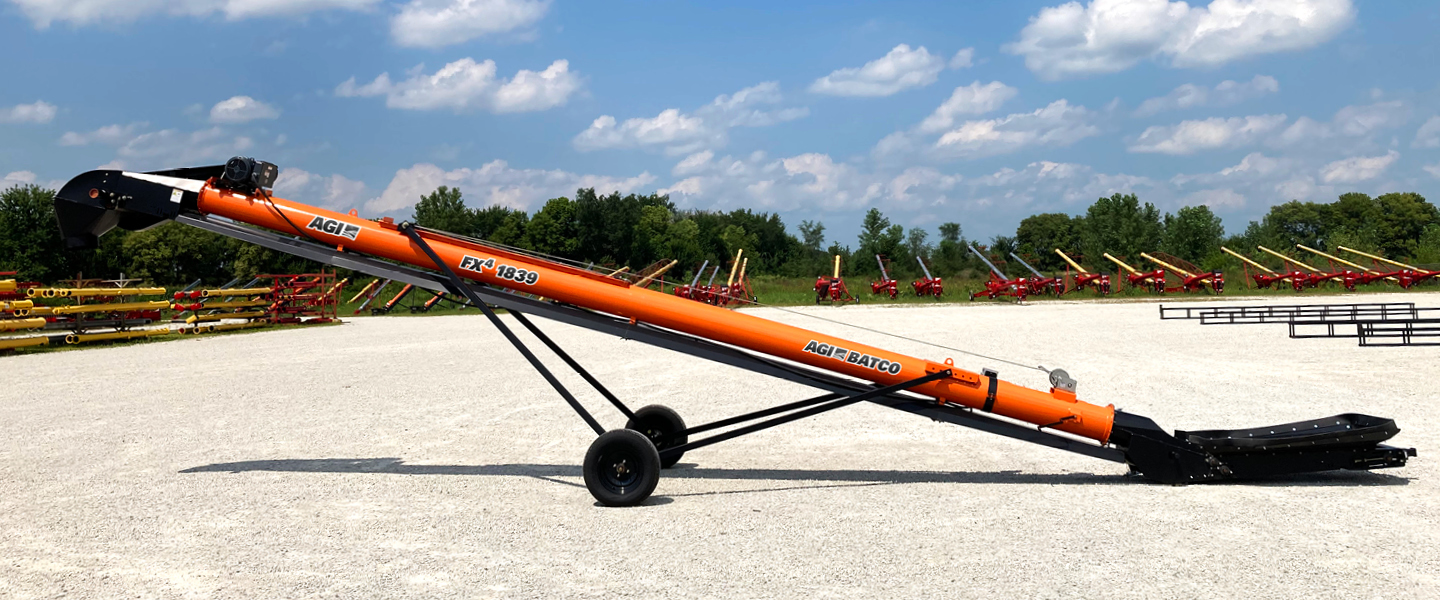

Whether you're working with electric, gas over hydraulic, or hydraulic drives, the FX⁴ is built to perform even when power sources are limited. Its rugged A-frame construction and 10" tube with a 15" chevron belt offer up to 7,000 BPH capacity, available in 39', 44' and 49' lengths.
Optional mover kit with FX⁴ SP.
Take mobility to the next level.
Upgrade your FX⁴ with the self-propelled mover kit, featuring hydraulic steering and all-terrain tires for tight turns and easy bin access. No lifting required—just smooth movement around the yard.
The FX⁴ SP offers:
- Parallel hopper cloth for consistent width across the working length
- Removable top plate for easy access to drive and pinch rollers
- Increased capacity of up to 8,000 BPH
- Gas over hydraulic drive powered by a 37 HP Vanguard engine
- Available in 39', 44' and 49' lengths, the FX⁴ SP gives you more power, more reach and more efficiency.
Key Features
Drives
Comes in electric, gas over hydraulic, or hydraulic drive so you can move grain even when you don't have electricity
New pinch roller design
Allows for easier assembly, better belt traction and improved efficiency
Hopper and under hopper skid plate
Includes a lifting handle to help guide conveyor into place with pivoting skid plate protecting the bottom of the belt from debris damage, and making it easier for one person clean-out
No-nonsense discharge hood
Causes commodities to flow straight down from the spout
Self-propelled mover kit
• Hydraulic steering and rugged all-terrain tires for easier bin access and tighter turning radius
• Makes moving around the yard easy with no lifting
• Makes moving around the yard easy with no lifting
Extended Lineup
FX⁴ Field Loader Image Gallery
Gas Over Hydraulic Drive
Gas Over Hydraulic Drive
The Command Center
Oil Cooler
FX⁴ FLTD Hopper
Drive roller and pinch roller track together and are easier to access with a removable top plate.
Parallel hopper cloth stays 33 3/8" wide for the full working length.
FX⁴ FLTD SHORT Hopper
Designed specifically for ultra-low bin unloads, hopper fits underneath even the lowest bin unloads.
Drive roller and pinch roller track together and are easier to access with a newly added removable top plate.
