The Perfect Solution

As with all Hi Roller® conveyors, the Hi Life® is custom designed and built to your specific requirements. Hi Roller® will assist you to determine the best combination of performance and cost to provide you with the safest, most cost effective solution to suit your needs today and in the future.

  • Features a flat carrying idler that operates independently of the cantilever idlers which eliminates belt slippage and extends belt and idler life.
  • Idlers are easily removable for replacement.
  • Flat carrier idler is easily adjustable for alignment
  • Patented idler design that resembles the trough configuration of a conventional conveyor.
  • No ledges or brackets for material to build up
  • No internal brackets for product to build up on
  • No exposed internal bearings
  • No exposed internal seals
  • Totally enclosed
  • Bottom lined with Antistatic UHMW plastic
  • Self-cleaning
  • Unique fastening system allows the UHMW Bottom Liner to remain flat even though it may expand or contract due to variations in temperature
  • Easily removable covers for inspection and maintenance
  • Easily removable side mounted inspection doors

The Hi Life idlers have non rotating spindles that enter the hub on the outer end of the troughing idlers. The dual tapered roller bearings are deeply embedded in the center of the roller and are isolated from any exposure to the dust and contaminants on the inside of the enclosure. The center of the idler is isolated by an air space to prevent any conduction of heat from a failed bearing. Hubs are enclosed so that they cannot leak grease. Grease seals are on the upper end of the troughing idlers so gravity prevents the grease from leaking out. The offset spacing of the three-piece idler reduces power requirements and induces less load support stress. The three-piece idler allows for a deeper trough than other spool shaped idlers used on the other Hi Roller models. This also eliminates slippage on the spool shaped idler. This means that the Hi Life Idler will provide more capacity for the belt width and greatly reduce the idler wear. The Hi Life is the ultimate in dust free long life conveying.

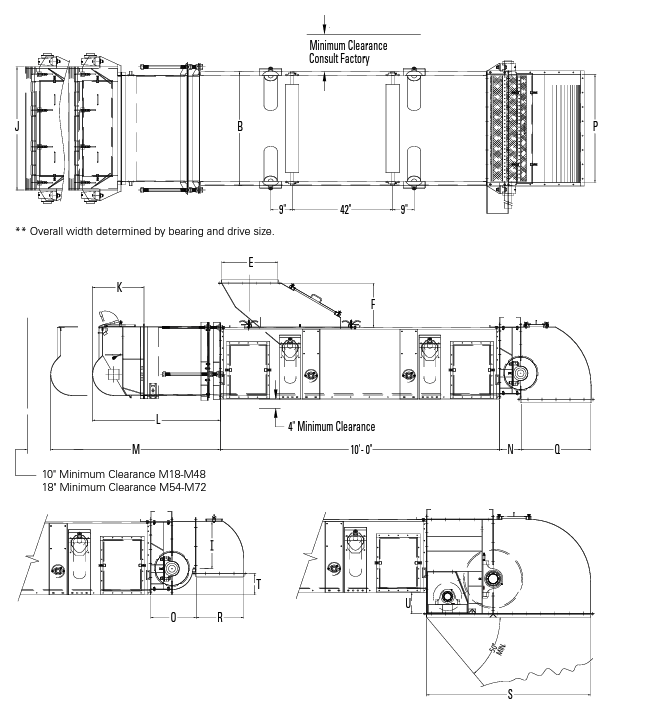

Standard Hi Life Clearance

Screen Shot 2023-05-12 at 3.15.45 PM.png

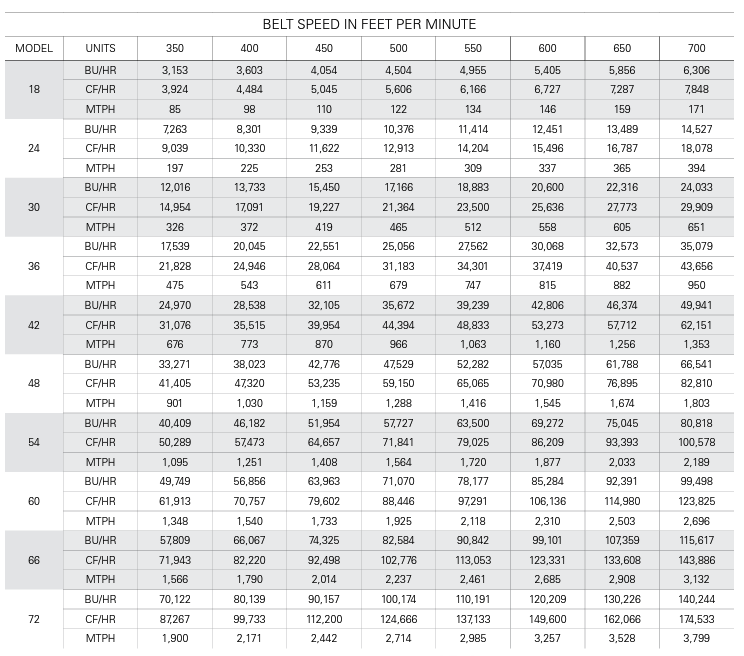

Hi Life Capacity Specifications

Screen Shot 2023-05-12 at 3.36.05 PM.png
