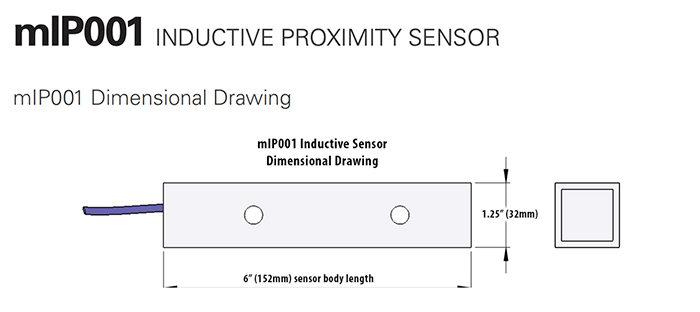

mIP001 Inductive Proximity Sensor mIP001 Inductive Proximity Sensor


The mIP001 Inductive Proximity Sensor is ideal for slack chain sensing applications on drag conveyors.  The mIP001 sensor seamlessly integrates into CMC's intrinsically safe, single-wire digital HazMon network.  Calibration is straightforward via the mDT001 handheld EZTester.  The mIP001 is available as an individual sensor for replacement and retrofit applications or can be supplied in a HazMon-In-A-Box™ kit with all mounting hardware for new installations.

Features and Benefits

  • Detects the presence or absence of metallic objects or surfaces
  • Ideal for use on product overflow relief doors on chain, bucket, and belt conveyors
  • Rugged dust tight and water resistant construction
  • Designed for use in hazardous locations (Class 2, Div. 1)
  • Easy field calibration using EZTest tool – reduced maintenance costs
  • Easy integration into CMC HazMon network – reduced installation costs
  • Single-wire, Intrinsically Safe design – reduces cable and conduit costs
