• Agricultural
• Construction
• Industrial
• Oil and gas
• Forestry
• Mining
• Marine
• Recreational
• Rental application

• CAN/CGSB-43.146 (Mobile IBC)
• Transportation of flammable/combustible products like gasoline, diesel and other fuels

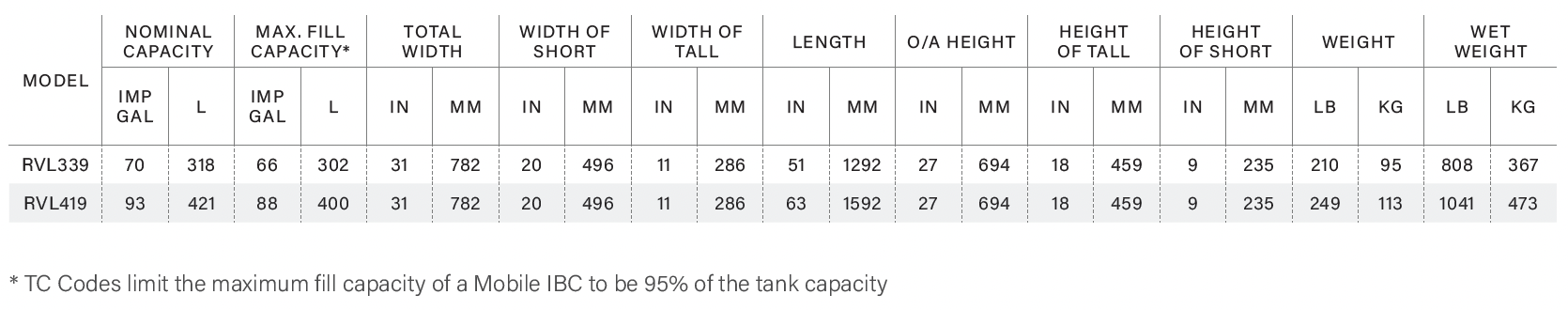

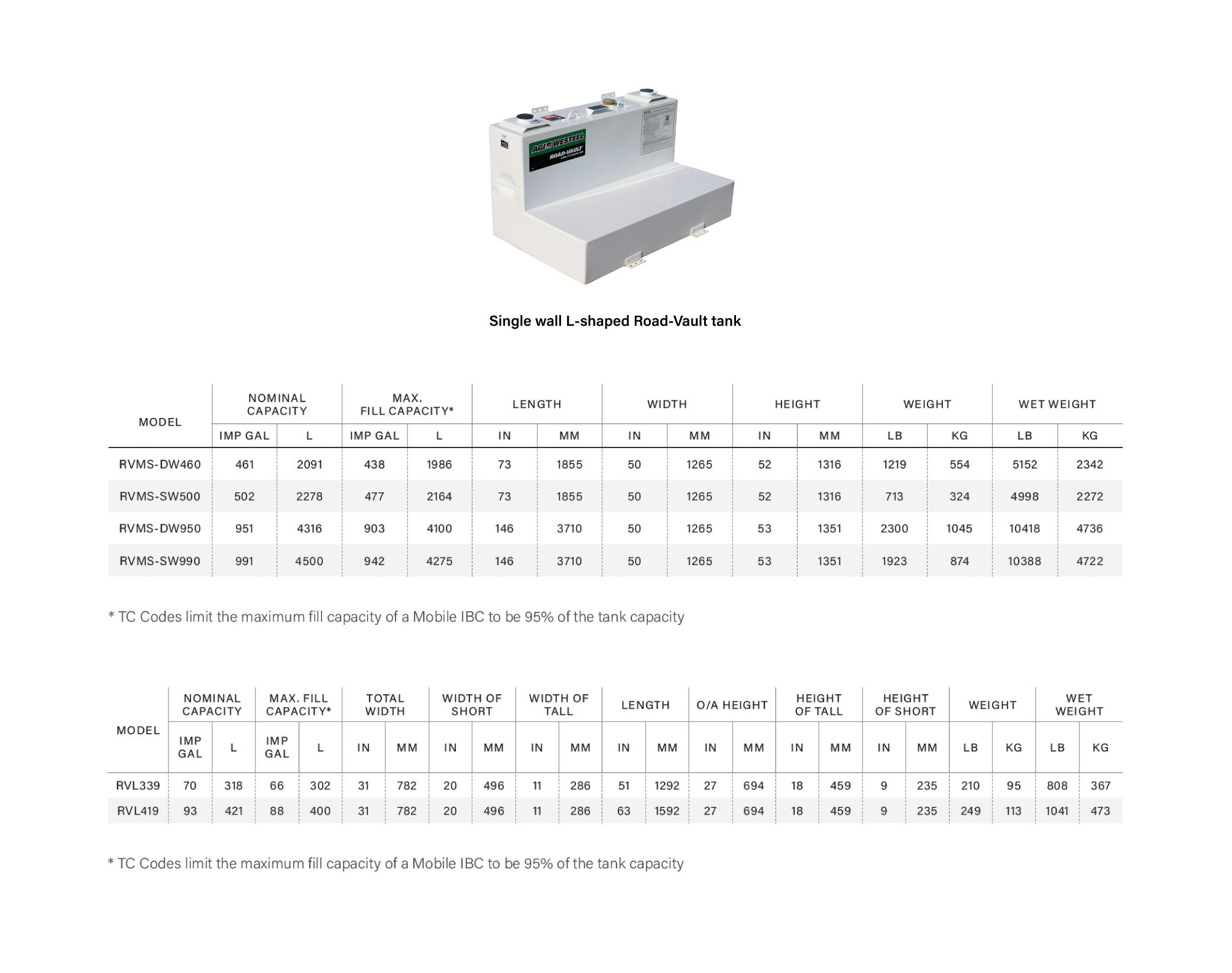

Single Wall L-Shaped Road-Vault Tanks

• Designed to fit most truck cargo boxes and cross bed tool storage containers
• Consists of a heavy gauge tank shell and strong ends to prevent deflection under load
• Lifting lugs, end handles and tie downs supplied for easy installation and safe secure tank placement

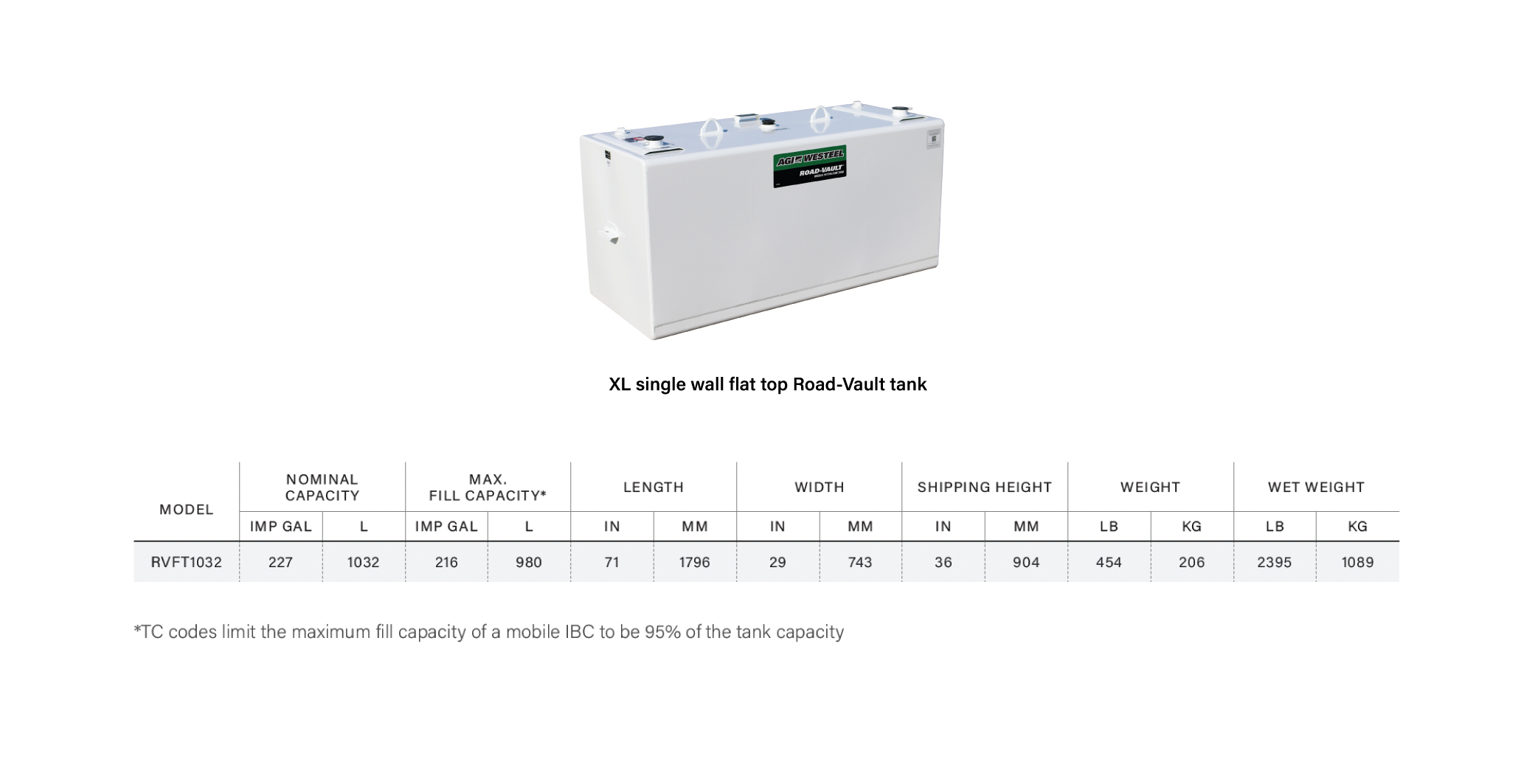

Extra Large Single Wall Flat Top Road-Vault Tanks

• Consists of a heavy gauge tank shell and strong ends to prevent deflection under load.

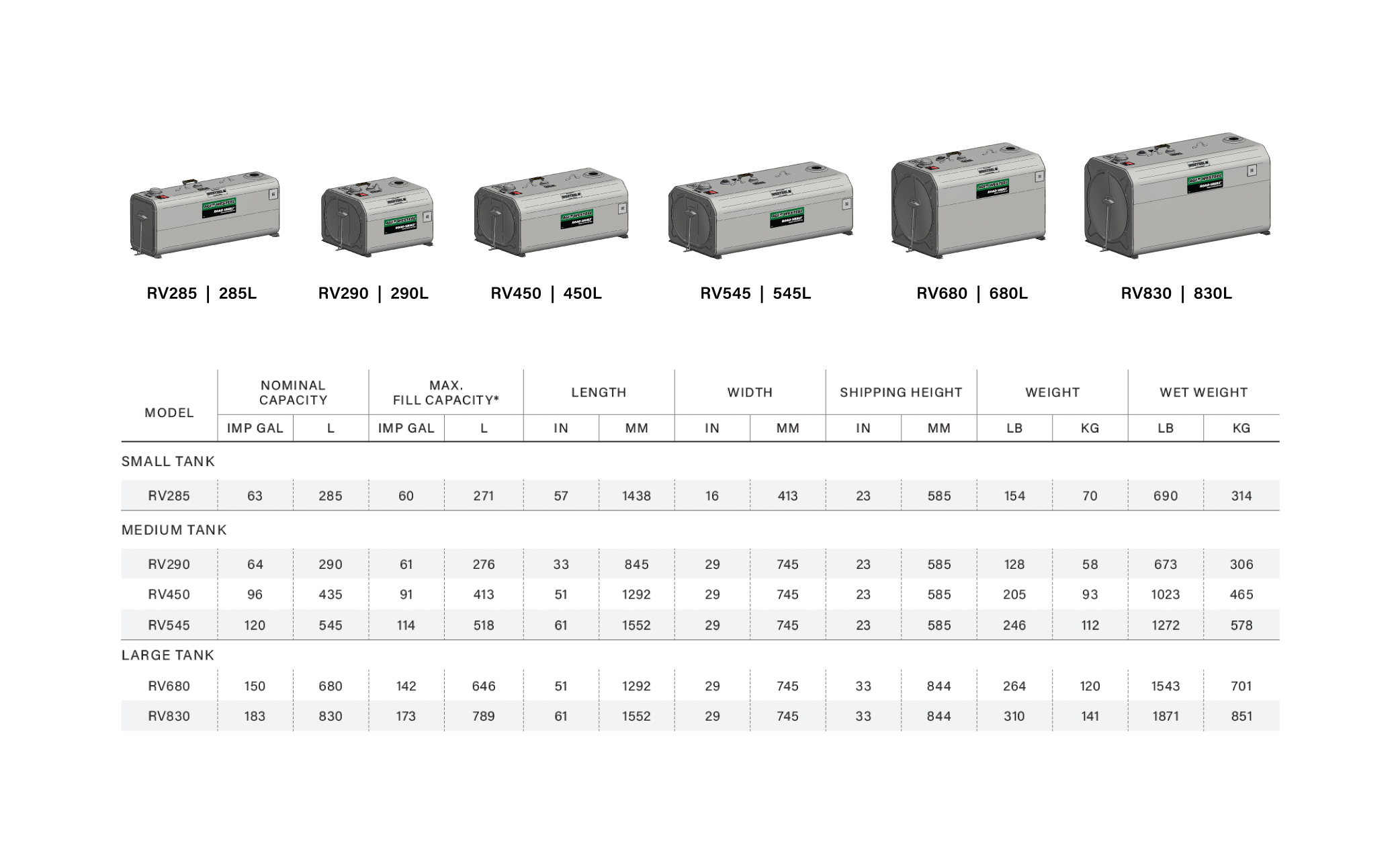

Single Wall Flat Top Road-Vault Tanks

• Recently redesigned single wall Road-Vault line from AGI Westeel with three profiles: small, medium and large.

• Medium and large models have embossed ends for added strength.

• 285L, 290L, 450L and 545L models have a low-profile design that can sit in the back of a pickup truck without obstructing the view out of the rear window.

• 285L model also fits between the wheel wells and back window on a short box pickup, allowing the user to accommodate both the fuel tank and most fifth wheel hitches.

• Circular pump mounts on all models eliminates coating issues.

• J-bolt tie down on all models allows for ease of installation and removal.

• Optional lifting lugs can be used to move the tank with fuel inside.

• Three standard fittings on all models, with optional extra fittings available.

• Integral baffle system on 830L, 680L, 545L, 450L, and 285L models increases structural rigidity and decreases fuel sloshing.

Road-Vault Protected (Dual Wall) Tanks

• Robust design engineered to provide environmentally safe mobile transportation of flammable or combustible liquids.

• Portable dual wall storage system delivers the standard features your mobile refueling application deserve.

• Embossed heads on 450L to 830L models add stiffening propertiess.

• Circular pump mounts eliminate coating issues.

• J-bolt tie down allows for ease of installation and removal (ratchet strap tie down option is also available).

• Three standard fittings on the 450L.

• Four standard fittings on 680L and 830L.

• 450L low profile design can sit in the back of a pickup truck without obstructing the view out of the rear window.

• Integral baffle system increases structural rigidity and decreases fuel sloshing.
