Fuel-Vault® dual wall tanks are built to CAN/ULC S601 and UL 142, are National and Provincial/State Fire Code compliant and ERCB D55 compliant. Tanks are fabricated by CWB certified welders under an ISO quality system.

Typical Applications
  • Petroleum retailing facilities
  • Petroleum bulk refueling facilities and fleet operations
  • Airport use for aircraft fuels, maintenance fuels and rental car fleet refueling
  • Stand-by generators
  • On-farm use for agricultural operations of all sizes
  • Industrial parks and transport-related commercial businesses
  • Oil and gas, forestry and mining facilities, including temporary and permanent sites
  • Marinas for use with boat fuels
  • Construction use for refueling heavy equipment on construction sites
  • Rental applications
  • Municipalities for equipment refueling, including fleet vehicles, graders, sanding trucks and heavy equipment
Options Available
  • Durable steel dual wall construction
  • Secondary shell that provides a minimum of 100% containment
  • Industry-leading, weather and corrosion resistant powder coated finish
  • Large-mouth spill box with fill, gauge and drain openings with a lockable weatherproof cover (Tanks larger than 11,000L)
  • Saddles
  • Interstitial space inspection port to help identify possible fluid release
  • Emergency pressure surge vent
  • Gauge stick/gauge chart and holder for confirming volumes included with tanks larger than 11,000L
  • Heavy duty lifting lugs for off-loading and positioning ease
  • Canstrut tabs on both heads to attach equipment options

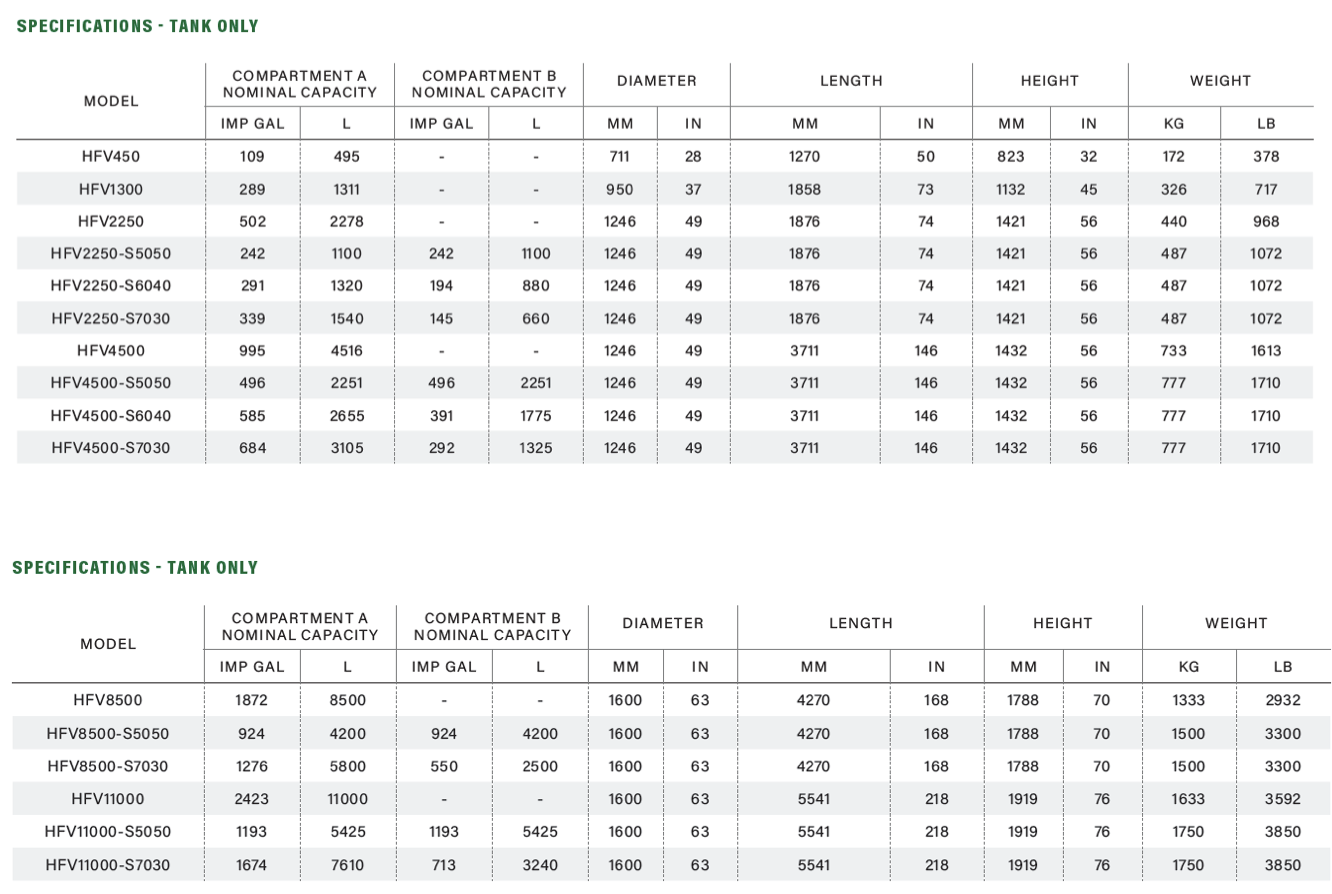

Screenshot 2023-07-11 at 1.58.37 PM.png

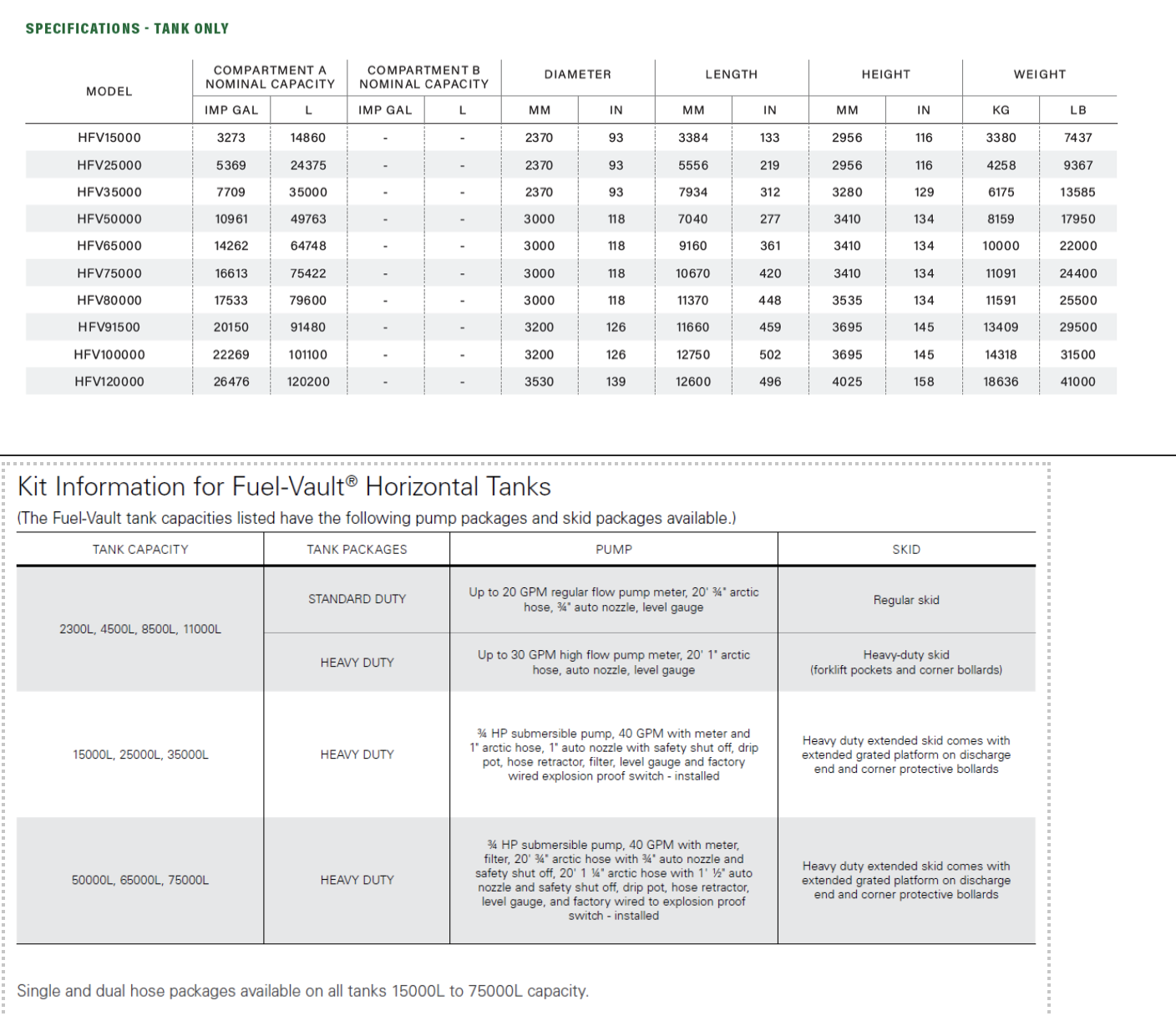

Screenshot 2023-07-11 at 1.58.47 PM.png

Westeel supplies custom configurations depending on needs
  • Off-the-shelf bare or skidded tank to be outfitted by the end user
  • Standard packages that include tank, skid, pump, meter, hose, overfill protection and more
  • Customized tanks that may include any or all of the following:
  • Catwalks for access to tank top fittings and components
  • End or side mounted stairs and ladders
  • Multiple compartments for storing different fuels in a single tank
  • Single and multi-product dispensers
  • Integrated turnkey options including integrated dispensers and/or cardlock systems
  • Lighting to allow for easier use at night
  • Remote/bottom fill systems that eliminate the need to climb to the top of the tank for filling
  • Custom colors and branding
  • Heating and insulation options for liquids that require freeze protection
  • Standard, heavy duty and live roll skids based on the use of the tank, frequency of moving and ground conditions
  • Advanced collision barriers to protect the tank in high traffic applications
  • And many more options
