Temperature sensing on bearings, motors and other general industrial equipment applications.

The sensor is accurate to 0.5°C over the –10°C to +85°C (14°F to 185°F) temperature range. It is usable from –67°F to +257°F (-55°C to +125°C)

Straightforward to install in the field with no calibration required. Typically a lug sensor would be used on bearings, gearboxes, motors, and fans as part of a condition-based machine temperature monitoring system or where a tube style temperature sensor cannot be used.

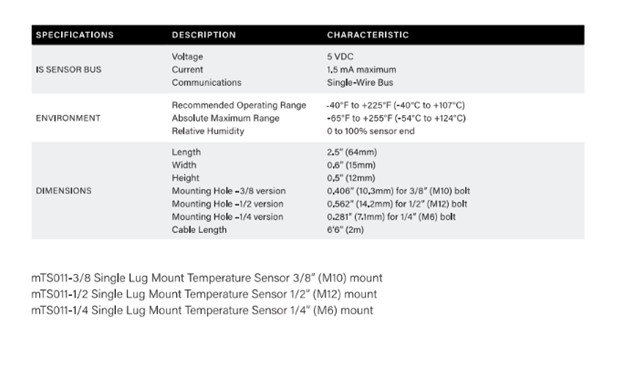

Understanding the mTS011-3/8 Intrinsically Safe Temperature Sensor Lug Style

  • The temperature sensor uses a single-wire data communications bus
  • Tin plated copper mounting lug
  • Up to 32 sensors can be connected in parallel to a single Bus Converter
  • 3/8” and 1/4” lug sizes available
  • 6’ (2m) of durable UL 2517 TPE cable with UV protection
  • Intrinsically Safe when used with the mBC083 Bus Converter
  • Each sensor has a unique permanent digital address
  • The sensor bus has a fully specified cabling system complete with terminal assembles and uses low cost CAT5 cabling and punch down blocks for easy termination
  • RJ11 modular jack for easy connection to CMC Field Interconnect Box (FIB)
  • No calibration required
