Typical applications include connection of pressure, vibration, weighing or other analog sensors to AGI CMC’s network.

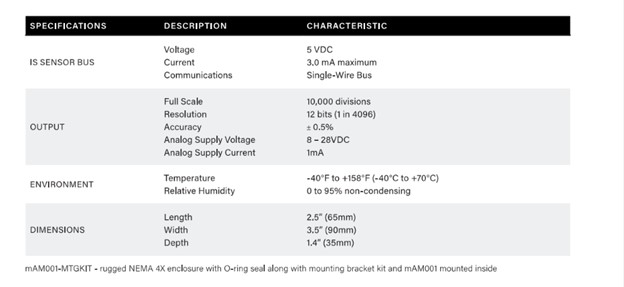

Understanding the mAM001 Analog Input Module:

  • The unit monitors analog inputs of 0 – 10 VDC or 0 – 20 mA
  • The analog input is fully isolated from the single-wire bus
  • When used with an approved barrier protected sensor power supply the module is intrinsically safe
  • The device connects to the single-wire communications bus using the attached 2m (6’) cable and RJ-11 connector
  • Power is derived from the single-wire bus
  • External power is required for the isolated analog system
