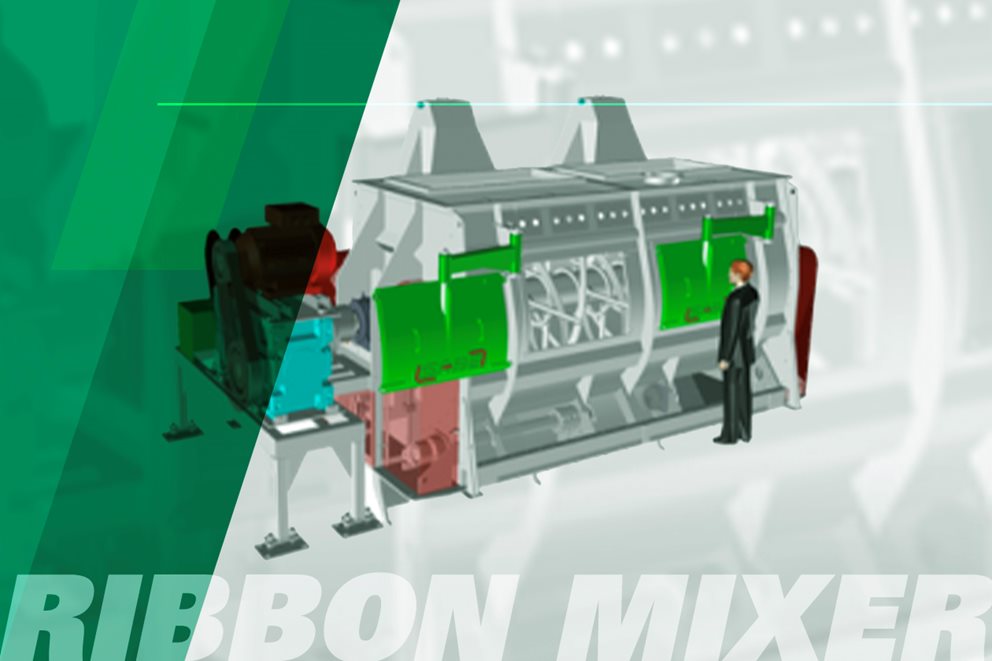

Ribbon Mixer Ribbon Mixer


Ribbon mixers are used to consistently mix flours with a 5 or 6 % inclusion of oil and grease



SABE ribbon mixer general specifications:

  • Working capacity: 6000 to 12000 litres
  • Minimum capacity: About 30% of the working capacity
  • Mix density: 0.3 to 1.2 T/m3
  • Number of mixes per hour: 12 max.
  • Emptying time: 30 seconds
  • Mixing tools: Double ribbon rotor



Discover its advantages:

  • Low electricity consumption, for example: 45kW to 75kW power for an 8,000 litre machine depending on the formulae and liquid content levels
  • Minimised retention and contamination thanks to a new mixer body shape and its integral wide-angle emptying hatch
  • Increased seal tightness for very finely graded products. Leak tightness provided by adjustable glands and compressed air pressurisation under 0.5 to 1 bar
  • Excellent mix consistency CV <5% (for example: gross CV on latest installed mixer 1.6%)
  • 2 large accessible side doors for easier cleaning
  • Easy access for maintenance through good mechanical access ergonomics
  • Liquid injector plates built into the body on both sides
  • Rotor specially designed for sticky products with a reverse possibility for thread and shaft self-cleaning. Free rings guaranteeing shaft self-cleaning
  • Gentle mixing without heating the product and without wear on the mixing components

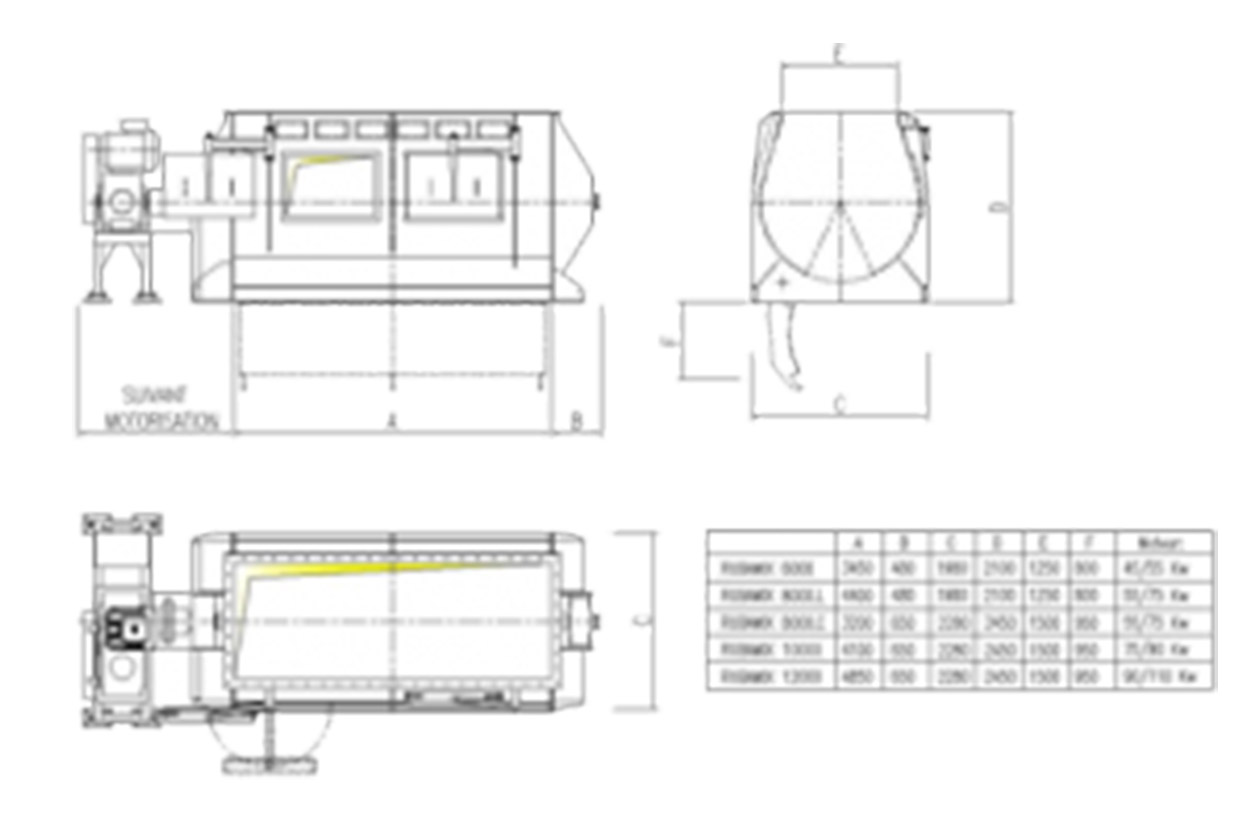

Mixer space occupation:
