Gamma Series Color Sorter


Graphics Panel

  • 15 “Linux based user friendly graphic user interface (GUI) with online support system
  • Image capturing systems with 200 profiles storage that enables quick machine settings.

Features

  • 16200 Pixels High speed Multichromatic Cameras
  • InGaAs Infrared system for sorting all foreign materials effectively
  • 5G Technology, with optional Panoramic Quality Analyzer
  • Fast response Maglev ejectors with life of 10 Billion cycles
  • Sniper technology -Target Located rejection for better carry-over ratio
  • Higher Capacity – Strong Software algorithm to analyse the sorting materials
  • Simplified UI system with more user friendly HMI
  • Specially designed for Rice Exporters for Food safety

Multi Chrome Cameras

  • Multichromatic 5400 Pixel High Speed cameras with excellent scanning rate.
  • Double vision scanning system to detect the slightest difference up to 0.01mm
  • Micron level visible light ultra-clear colour sensor for detect pinpoint and better rejection ratio
  • Equipped for reverse sorting & size sorting methodology

GAMMA Series Color Sorter Technology

  • 7th Generation FPGA Processing with Auto Intelligent Digital Image Sorting Technology.
  • Product scanning speed of 35000 lines/sec. Auto calibration feature with Auto setting & Auto sorting control.
  • High Brightness Adjustable Cool white LED Lighting systems with life span of 50,000 Hrs.
  • Self –diagnosis and memorization of different scanned products.

Ejectors

  • Fast response time of 0.8 milliseconds maglev technology ejectors with 3.8mm nozzles and a minimum life time of 10 billion cycle.
  • Upgraded with quality ejector feedback system that can monitor the ejections.

Chutes

  • Anodized chutes having smooth surface to facilitate the even flow of the material.
  • Heating provision for chutes to avoid choking of material.

Technology

  • 7th Generation FPGA Processing with auto intelligent digital image sorting technology.
  • Product scanning speed of 35000 lines/sec.
  • Auto calibration feature with Auto setting & Auto sorting control.
  • High brightness adjustable cool LED lighting systems with life span of 120,000 Hrs.
  • Self –diagnosis and memorization of different scanned products.

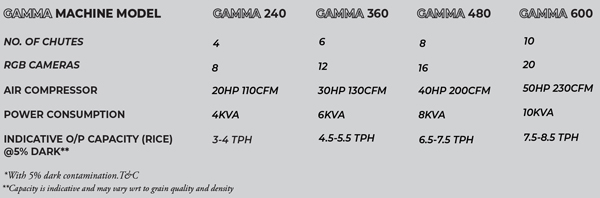

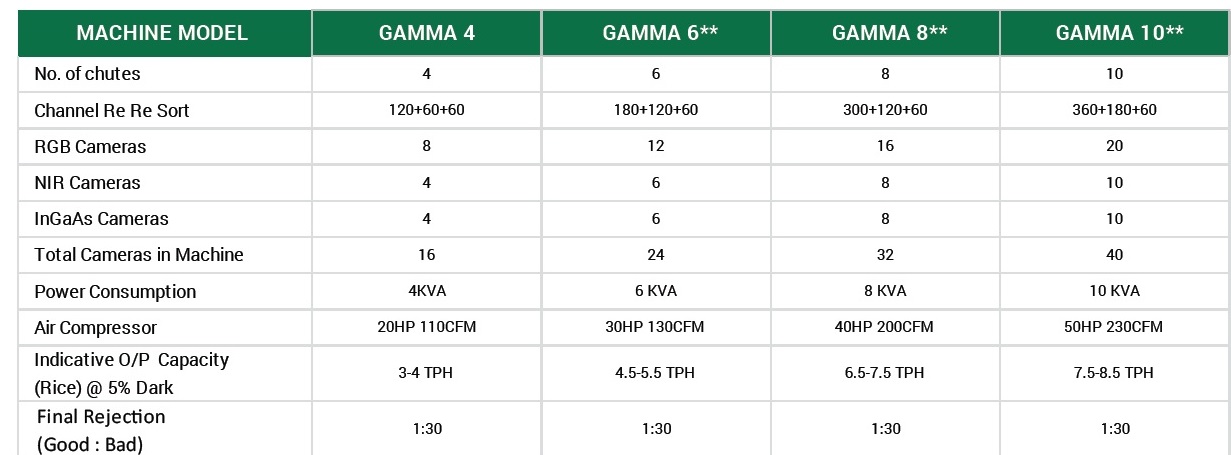

Technical Description

MILLTEC GAMMA  Series Color Sorter Technical Description.jpg

*Capacity is indicative and may vary wrt to Gain Quality & Density.
*Capacity for other than Non Rice Grains may also vary wrt to Grain Size & Density.
