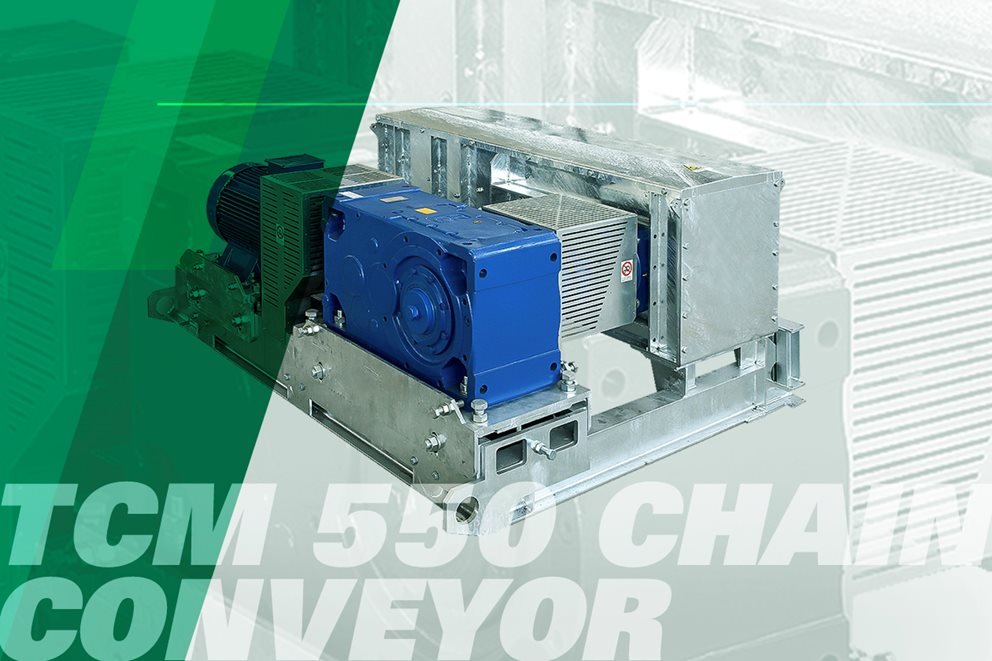

TCM 550 Chain Conveyor TCM 550 Chain Conveyor


General Features:

  • Designed for the transport of granular or dusty products (typically cereals, oilseeds, flour, meals and their by-products)

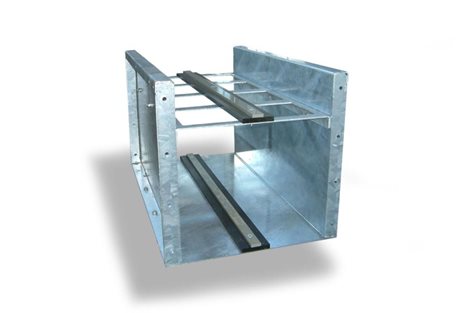

  • Constructed from carbon-steel plates, with reinforced frames for durability
  • Modular construction, with customization according to the customer’s requirements
  • Surface treatment by hot dip galvanization or epoxy dust painting
  • Able to withstand abrasive products
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TCM 550 Specific Specifications:

  • Typical capacity range: 340:480 m3/h (250:350 t/h on wheat)
  • Bent link chain: pitch/thread 160 mm., breaking load max 540,000 N
  • Drop forged chain: pitch/thread 142 mm., breaking load max 420,000 N
  • Max. installed power: 75 kW



Most common applications:

  • Large sized storage plants
  • Industrial plants
  • Dock terminals
  • Oil extraction
  • Bio-fuel production
  • Suited for handling cereal and oil seeds
  • Ideal for high capacity loads
