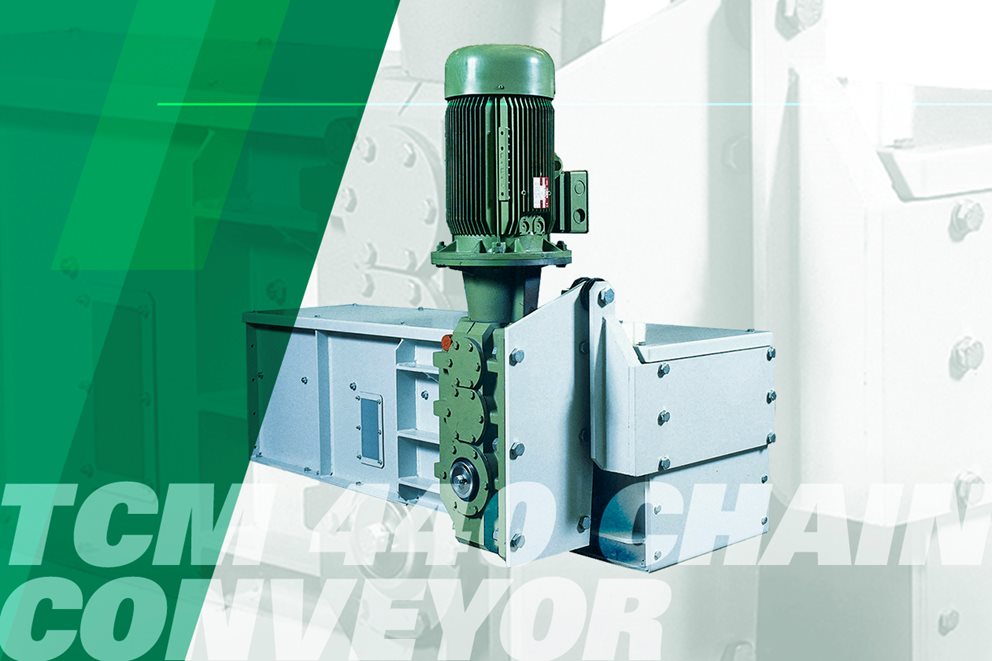

TCM 440 Chain Conveyor TCM 440 Chain Conveyor


General Features:

  • Designed for the transport of granular or dusty products (typically cereals, oilseeds, flour, meals and their by-products)
  • Constructed from carbon-steel plates, with reinforced frames for durability
  • Modular construction, with customization according to the customer’s requirements
  • Surface treatment by hot dip galvanization or epoxy dust painting
  • Able to withstand abrasive products
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TCM 440 Specific Specifications:

  • Typical capacity range: 270:340 m3/h (200:250 t/h on wheat)
  • Bent link chain: pitch 160 mm., breaking load max 224,000 N
  • Drop forged chain: pitch 142 mm., breaking load max 270,000 N
  • Max. installed power: 45 kW



Most common applications:

  • Medium to large sized storage plants
  • Industrial plants
  • Oil extraction
  • Bio-fuel production
