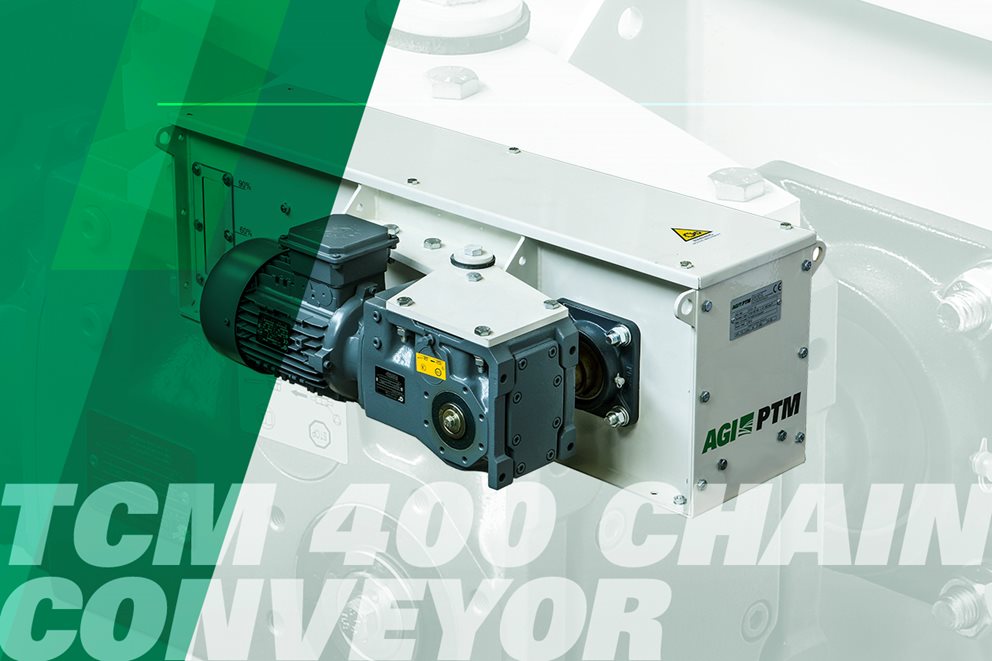

TCM 400 Chain Conveyor TCM 400 Chain Conveyor


General Features:

  • Designed for the transport of granular or dusty products (typically cereals, oilseeds, flour, meals and their by-products)
  • Constructed from carbon-steel plates, with reinforced frames for durability
  • Modular construction, with customization according to the customer’s requirements
  • Surface treatment by hot dip galvanization or epoxy dust painting
  • Able to withstand abrasive products
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TCM 400 Specifications:

  • Typical capacity range: 110:270 m3/h (80:200 t/h with wheat)
  • Bent link chains: pitch 125 mm., breaking loading max 160,000 N
  • Drop forged chain: pitch 101.6 mm., breaking loading max 150,000 N
  • Max. power installed. 30 kW



Most common applications:

  • Medium storage and industrial plants
  • Mills
  • Feed mills
  • Malt breweries
  • Oil extraction
  • Bio-fuel production
  • Inerts and wood processing
