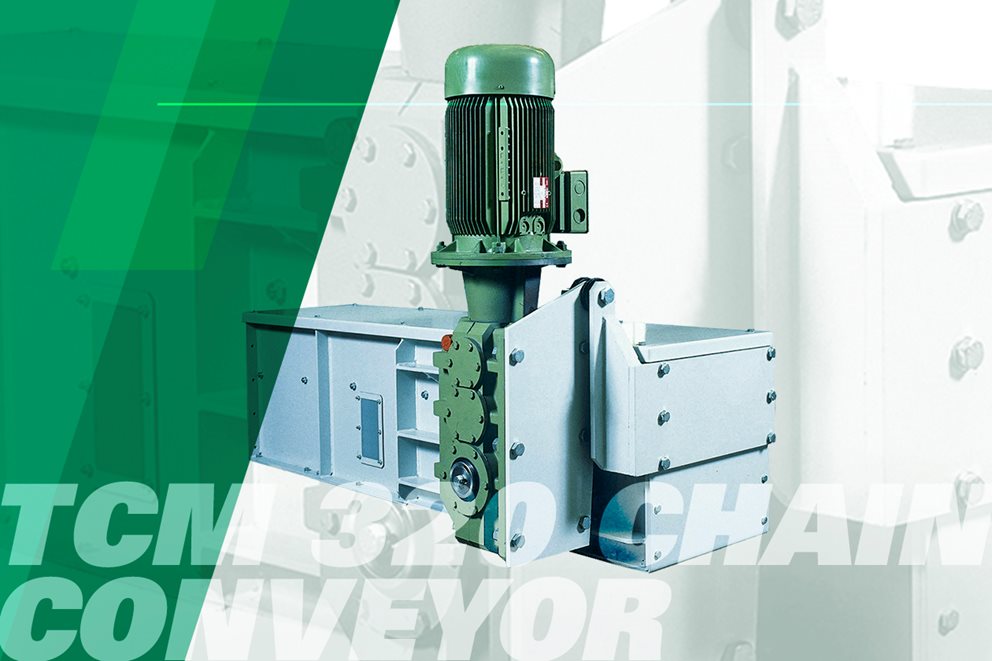

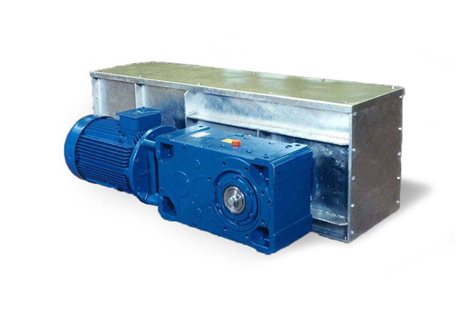

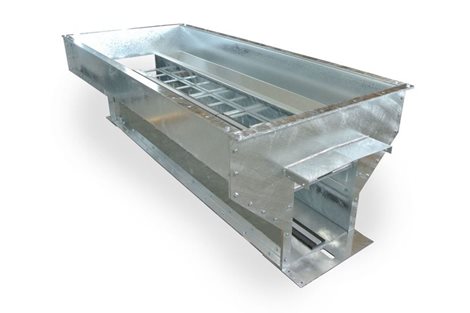

TCM 320 Chain Conveyor TCM 320 Chain Conveyor


General Features:

  • Designed for the transport of granular or dusty products (typically cereals, oilseeds, flour, meals and their by-products)
  • Constructed from carbon-steel plates, with reinforced frames for durability
  • Modular construction, with customization according to the customer’s requirements
  • Surface treatment by hot dip galvanization or epoxy dust painting
  • Able to withstand abrasive products
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TCM 320 Specifications:

  • Typical capacity range: 60:80 m3/h (40:60 t/h on wheat)
  • Bent link chain: pitch 100 mm, breaking load max 56,000 N
  • Max. installed power: 9.2 kW



Most common applications:

  • Best suited for handling grain, flour, and by-products
  • Installed in small storage plants, mills, feed mills, and malt breweries
