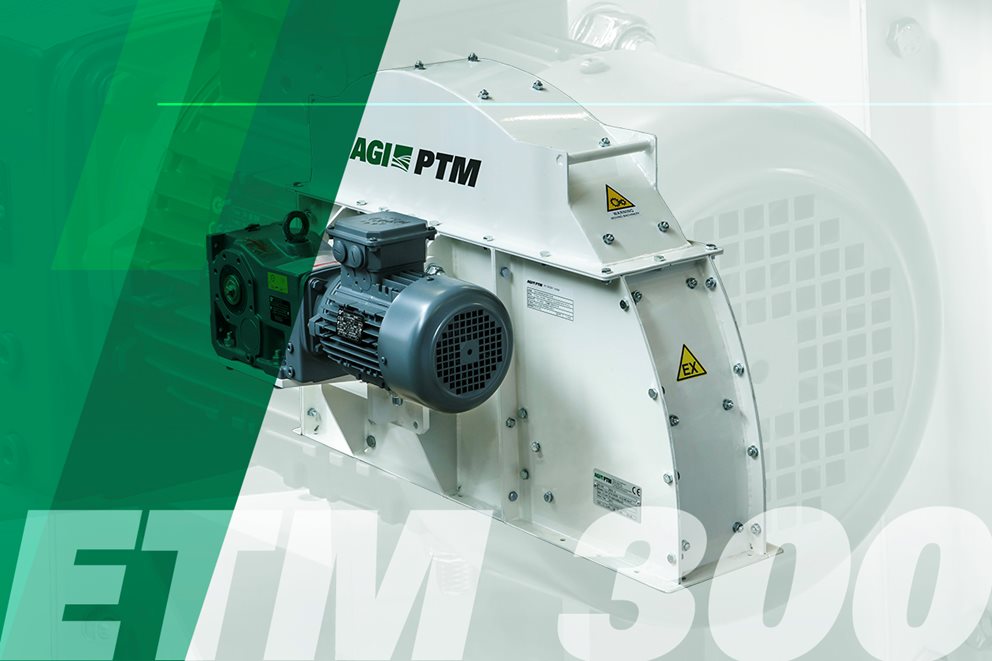

ETM 300 Bucket Elevator ETM 300 Bucket Elevator


General Features:

  • Designed for the vertical transport of granular or dusty products (typically cereals, oilseeds, flour, meals and their by-products)
  • Constructed from carbon steel sheets, with welded reinforcement frames, and legs formed from four bent and bolted panels joined with a spacer with high resistance to over pressure (≥2,0 bar)

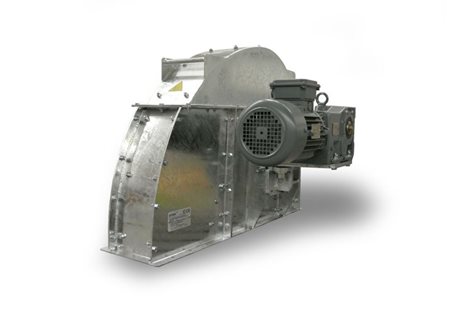

  • The driving head has a double cover, with bolted plates made from anti-wearing steel  equipped with a belt alignment control system

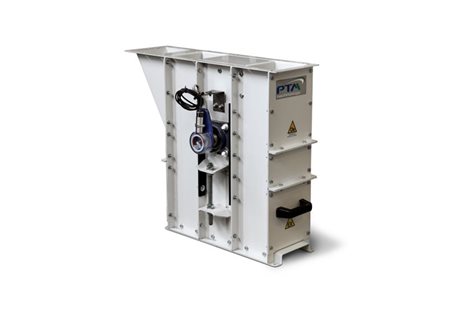

  • The return tail is equipped with a screw tension system, double cleaning doors, speed control system and belt alignment control system
  • Self-cleaning tail is also available in order to avoid the pollution of the product
  • Surface treatment by hot dip galvanization or epoxy dust painting
  • Customizable, modular construction
  • Gentle handling/transport of delicate products
  • Withstand abrasive products
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



ETM 300 Specifications:

  • Typical capacity ranges: 25÷45 m3/h (20÷35 t/h on wheat)
  • Buckets with deep profile: 1+1 types (steel / polyethylene)
  • Buckets with open profile: 1+1 types (steel / polyethylene)
  • Belt:  antistatic, oil proof, breaking load max. 400 N/mm
  • Self-standing structure up to 25 m height
  • Max. installed power: 7.5 kW



Most common applications:

  • Mills
  • Feed mills
  • Malt breweries
  • Plastics
  • Chemicals
