ELA 550 Bucket Elevator ELA 550 Bucket Elevator


General Features:

  • Constructed of pre-galvanized sheet steel, with minimal welding
  • Modular, preconfigured construction
  • Customization is not available

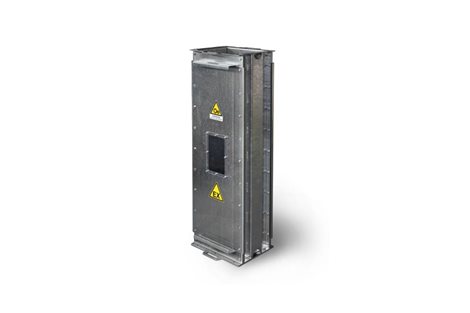

  • Legs are formed by four bent and bolted panels, making them solid and highly resistant to overpressure

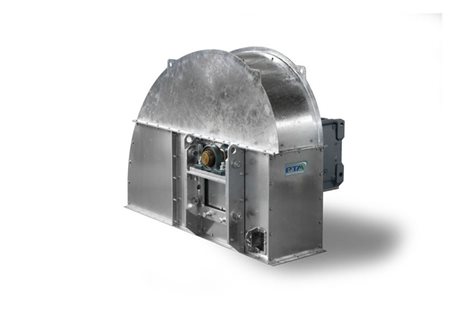

  • Driving head has double cover, with anti-wearing steel bolted plates

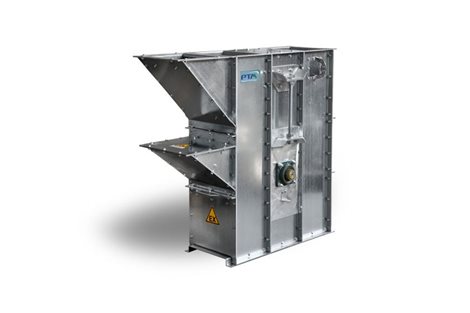

  • Return tail is equipped with a screw tension belt system and double cleaning doors
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance



ELA 550 Specifications:

  • Typical capacity ranges: 200÷270 m3/h (150÷200 t/h on wheat)
  • Steel buckets: type 3018.JA  (deep profile)
  • Belt:  antistatic, oil proof, breaking load max. 630 N/mm
  • Self-standing structure up to 40 m height
  • Max. installed power: 37 kW



Most common applications:

  • Medium sized storage plants
  • Harvesting and re-delivery of crops
  • Transporting cereal (usually wheat or corn)
