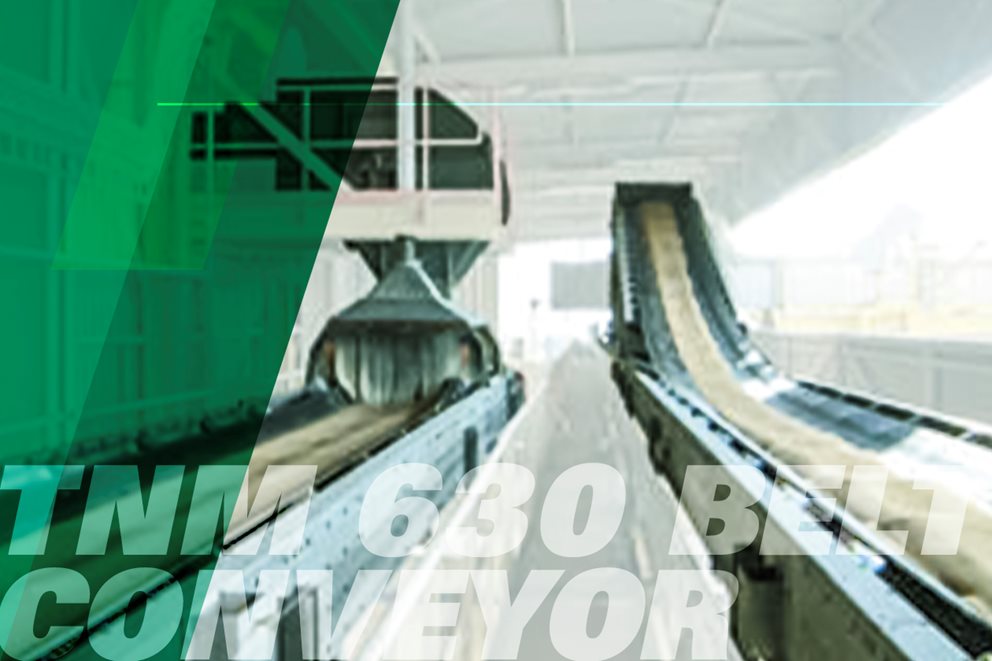

TNM 630 Belt Conveyor TNM 630 Belt Conveyor


General Features:

  • Designed for the conveyance of cereal, oil seeds, rice, flours, seeds, and delicate products in general
  • Open or closed version that can be galvanized (hot-galvanizing of all the non-moving parts), or painted using feed or non-feed epoxy powders (on the inside or outside depending on the purchaser’s specifications)
  • High capacity with a low energetic waste
  • Self-cleaning to avoid pollution between different products
  • Gentle handling of delicate products
  • Customization for specific customer needs
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TNM 630 Specifications:

  • Typical capacity range: 600÷1500 m3/h (500÷1200 t/h on wheat)
  • Diameter of the drive drum: 630 mm

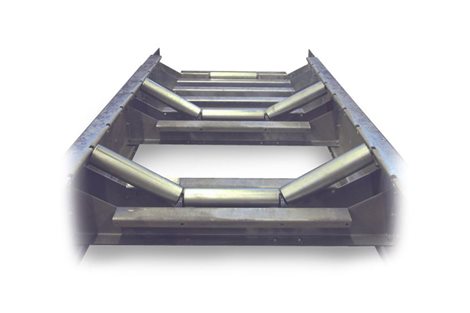

  • Diameter of the rollers: 108 mm
  • Belt width: 1000 / 1200 mm
  • Available models: open (with final discharge) – closed (with final discharge) – open (with tripper of discharge)
  • Max. breaking load of the belt: 500 N/mm
  • Max. installed power: 132 kW



Most common applications:

  • Loading big storage centers (set of silos and/or flat stores)
  • Discharging lines and/or loading of ships in plants of a sea-port
  • Long-distance transports (ex. connections within industrial areas or docks)
