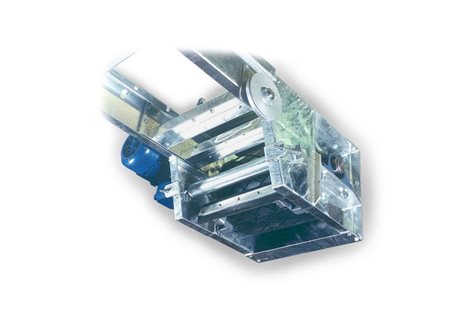

TNM 340 Belt Conveyor TNM 340 Belt Conveyor


General Features:

  • Designed for the conveyance of cereal, oil seeds, rice, flours, seeds, and delicate products in general
  • Open or closed version that can be galvanized (hot-galvanizing of all the non-moving parts), or painted using feed or non-feed epoxy powders (on the inside or outside depending on the purchaser’s specifications)
  • High capacity with a low energetic waste
  • Self-cleaning to avoid pollution between different products
  • Gentle handling of delicate products
  • Customization for specific customer needs
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TNM 340 Specifications:

  • Typical capacity range: 60÷160 m3/h (40÷120 t/h on wheat)

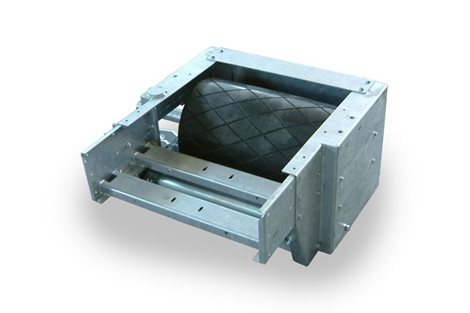

  • Diameter of the drive drum: 340 mm
  • Diameter of the rollers:  60-76 mm
  • Belt width: 300 / 350 / 450 mm

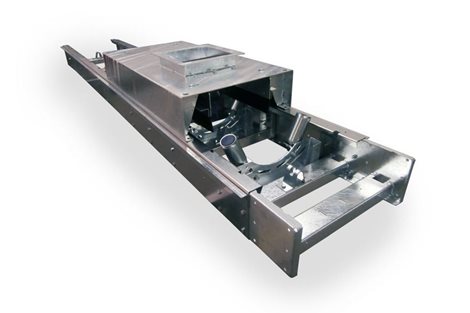

  • Available models: open (with final discharge) – closed (with final discharge) – open (with tripper)
  • Max. breaking load of the belt: 400 N/mm
  • Max. installed power: 11 kW



Most common applications:

  • Loading of flat stores (of small sizes)
  • Long-distance transport ex. connections within industrial areas or docks)
