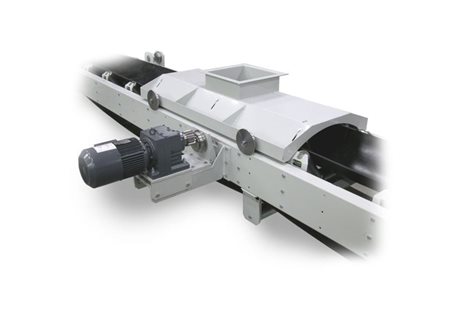

TNM 240 Belt Conveyor TNM 240 Belt Conveyor


General Features:

  • Designed for the conveyance of cereal, oil seeds, rice, flours, seeds, and delicate products in general
  • Open or closed version that can be galvanized (hot-galvanizing of all the non-moving parts), or painted using feed or non-feed epoxy powders (on the inside or outside depending on the purchaser’s specifications)
  • High capacity with a low energetic waste
  • Self-cleaning to avoid pollution between different products
  • Gentle handling of delicate products
  • Customization for specific customer needs
  • Loading, unloading, and control accessories are available
  • Reliable, easy-to-install, easy maintenance
  • Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)



TNM 240 Specifications:

  • Typical capacity range: 200÷450 m3/h (150÷350 t/h on wheat)
  • Diameter of the pulling drum: 240 mm

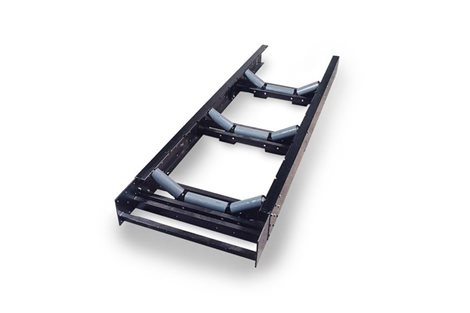

  • Diameter of the rollers:  89 mm
  • Belt width: 600 / 650 / 750 mm
  • Available models: open (with final discharge) – closed (with final discharge)
  • Max. breaking load of the belt: 250 N/mm
  • Max. installed power: 11 kW
  • Max. length: 30m



Most common applications:

  • Short distance transport
