Offering high performance and durability in demanding environments, M-Line Bucket Elevators are a reliable and efficient solution for the vertical transportation of granular or dusty products – typically cereals, oilseeds, flour, meals and their by-products.
They also offer a wide range of customisable features, so it’s easy to tailor M-Line Bucket Elevators to your specific requirements. The most common applications are small storage plants, mills, feed mills, breweries, malt breweries, plastics, and chemicals.
Key Features
Durable construction
Manufactured from carbon steel sheets, with welded reinforcement frames and legs formed from four bent and bolted panels joined with a spacer, for high resistance to overpressure (≥2,0 bar).
Advanced return tail design
Equipped with a screw tension system, double cleaning doors, speed control system and belt alignment control system.
Available self-cleaning tail
Helps prevent product contamination.
Double cover driving head
With bolted plates made from anti-wearing steel equipped with a belt alignment control system.
Choice of surface treatments
Select either hot dip galvanisation or epoxy dust painting.
Gentle handling
Maintains the quality of delicate products.
Available accessories
Loading, unloading, and control accessories are available.
Easy installation and maintenance
Customisable, modular construction that can withstand abrasive products.
Compliant design
Standard execution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22).

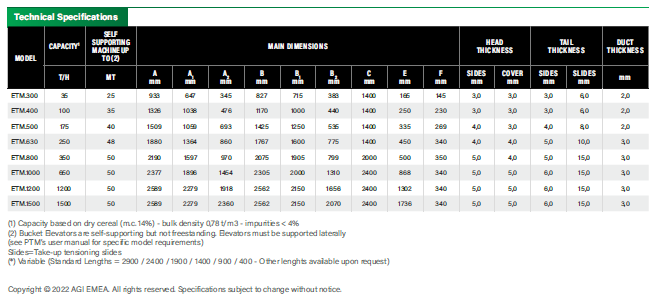

Specifications
- Typical capacity ranges: 30÷130 m3/h (25÷100 t/h on wheat)
- Buckets with deep profile: 3+3 types (steel / polyethylene)
- Buckets with open profile: 3+3 types (steel / polyethylene)
- Belt: Antistatic, oil proof, breaking load max. 400 N/mm
- Self-standing structure up to 35 m height
- Max. installed power: 11 kW
