Graphics Panel
- 15″ Linux based user friendly Graphic user interface (GUI) with Online Support System.
- Image capturing systems with 200 profiles storage that enables quick machine settings.
Features
- 16200 Pixels Multichromatic Cameras
- Fast response Maglev ejectors with life of 10 Billion cycles
- Impurity & Broken analysis with Online Sorting Preview
- Reverse Sorting & Size Sorting
- Optional 4 time sorting for better carry-over ratio
- 15” Screen with Linux based Self Diagnosis System
- High Performance to Cost
- Multicolor RGB LED Lighting System for Multiproduct Sorting
Multi Chrome Cameras
- Multichromatic 16200 Pixel High Speed cameras with excellent scanning rate.
- Double Vision Scanning System to detect the slightest difference up to 0.01mm.
- Binocular 3D Reconstruction Software for all products.
- Equipped for Reverse sorting & Size Sorting Methodology.
Technology
- 6th Generation FPGA Processing with Auto Intelligent Digital Image Sorting Technology. Product scanning speed of 32500 lines/sec.
- Auto calibration feature with Auto setting & Auto sorting control.
- High Brightness Adjustable Cool white & Multicolour RGB LED Lighting systems with life span of 50,000 Hrs.
- Self – diagnosis and memorization of different scanned products.
Maglev Ejectors
- Maglev technology Ejectors with fast response time of 0.8 milliseconds, 3.8 mm Nozzle and a life time of 10 Billion Cycles.
- Upgraded with Quality ejector Feedback system that can monitor the ejections.
- Highly Efficient Dust collection system.
Chutes
- Anodized chutes having smooth surface to facilitate the even flow of the material.
- Heating provision for chutes to avoid choking of material.

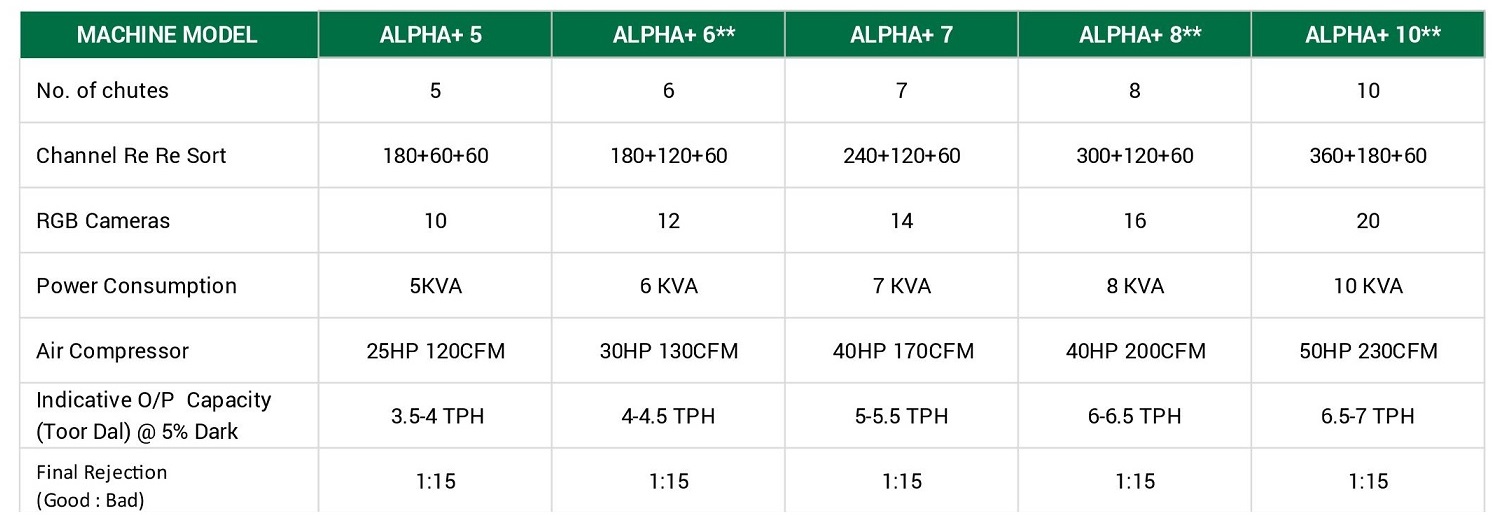

Technical Description
*Capacity is indicative and may vary wrt to Gain Quality & Density.
*Capacity for other than Non Rice Grains may also vary wrt to Grain Size & Density
