U-Trough Auger U-Trough Auger


A simple, economical U-Trough auger design from Mayrath.

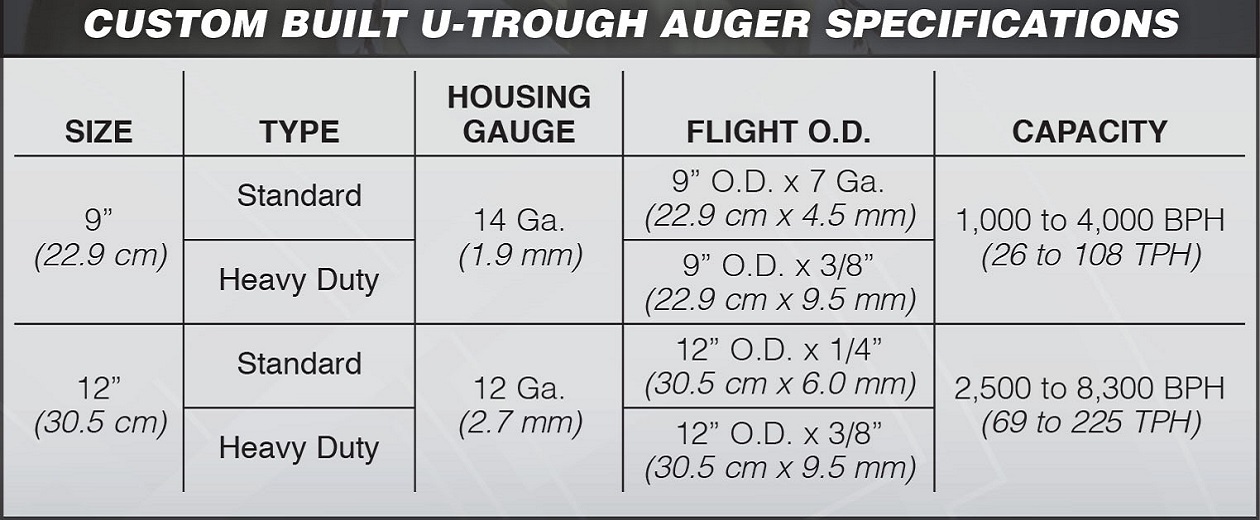

  • Capacities 1,000 – 8,300 BPH
  • Drive options include oil both chain reducer or choice of standard gear reducer or Dodge reducer
  • Available in 9” and 12’ diameter sizes
  • Flight and bearings installed for easy field installation
  • Choice of nylon or wood hanger bearings
  • All pulley and belts provided

Available Accessories

  • End flanges
  • Inlet hopper with cover
  • Support foot
  • Inlet slide gate for under-bin use
  • Drops with enclosed slide gate
  • Pit hopper and pit hopper grating
