As the world's first mechanically driven swing conveyor, the LCX⁴ delivers up to 9,000 BPH using PTO power, allowing farmers to operate with a 60 HP tractor while maintaining the capacity needed during busy harvest windows.
Completely redesigned from the ground up, the LCX⁴ combines a reinforced scissor frame, stronger trussing and an all-new hopper system to improve durability, grain containment and throughput. The result is a swing conveyor that's easier to operate, built for today's larger farms and ready to keep grain moving when timing matters most.
Specifications
- Tube 10" tube
- Belt 15" wide
- Lengths: 68', 78’, 88’, 98’ & 108’
- Capacity up to 9,000 BPH
Key Features
Mechanical swing
The PTO-driven mechanical swing runs at high capacity using a smaller tractor without the need of constant hydraulic flow.
New hopper design & seals
• The bigger hopper gives grain more time to take up speed, unloading trucks faster with smoother, consistent flow.
• Smaller seals exposes more moving belt, increasing capacity while keeping a tight seal.
• Smaller seals exposes more moving belt, increasing capacity while keeping a tight seal.
Overhauled scissor frame
Reinforced scissor frame built to handle tough conditions and the increased capacity.
Reinforced trussing
Run longer conveyors with confidence and long-term durability.

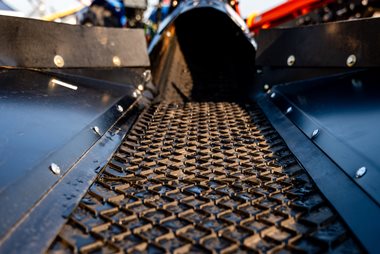

Direct X™ Belt with Edge Seal
Ensures a tight seal between the flashing and the belt without impeding grain flow.
All farm commodity system
Belt brush, three belt scrapers and the turbo clean wash systems mean quick clean out between commodities.
Updated spout
Control flow better and reduce leaks across all commodities.
Updated S-Drive
Simplify maintenance with a drive built for higher capacity.
Hydraulic flow splitter
Operate with only two tractor remotes for simpler setup.
Hydraulic hitch
Adjust the height of the main hopper giving better ground clearance in transport and better clearance and capacity of the swing during operations.
Swing lift arm
Lifts the swing clear and tucks it in tight for transport—no winches or cable maintenance.
New swing boot
Added inspection windows to easily monitor grain flow and prevent plugging.
New swing hopper with advanced sealing
Delivers a tight seal across all commodities for cleaner, more efficient handling.
Low-profile steel swing hopper
Comes standard with wireless remote.
