The brass temperature sensor is accurate to 0.5°C over the –10°C to +85°C (14°F to 185°F) temperature range, and is usable from -67°F to +257°F (-55°C to +125°C).
The mTS015 sensor’s recommended operating range is -40°F to +225°F (-40°C to +105°C) and it is rated as Intrinsically Safe when used with the mBC083 Bus Converter.
Straightforward to install in the field with no calibration required.
Typically this brass temperature sensor is used as a rub sensor in part of a brass rub block assembly to detect belt misalignment on conveyors and bucket elevator legs.
Typical applications include temperature sensing on rub blocks used on belt conveyors and bucket elevators.
Understanding the mTS015 Intrinsically Safe Brass Temperature Sensor
- The temperature sensor uses a single-wire data communications bus.
- Up to 32 sensors can be connected in parallel to a single Bus Converter.
- 3/8” x 16 threaded brass rod, complete with single jam nut
- The sensor bus has a fully specified cabling system complete with terminal assembles and uses low cost CAT5 cabling and punch down blocks for easy termination.
- Brass housing is standard - stainless steel is available, consult the factory.
- 6’ (2m) of durable UL 2517 TPE cable with UV protection.
- Intrinsically Safe when used with the mBC083 Bus Converter
- Each sensor has a unique permanent digital address
- RJ11 modular jack for easy connection to CMC Field Interconnect Box (FIB)
- No calibration required.

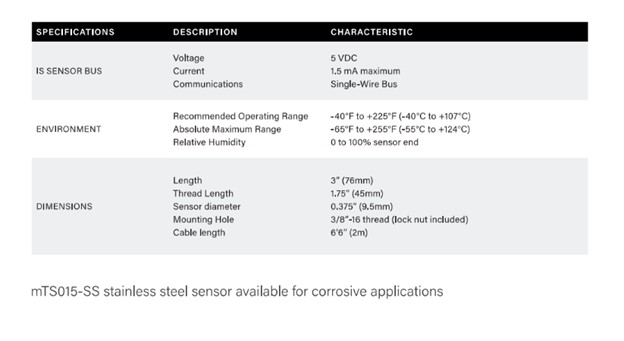

Specifications:
