The sensors are displayed on a web page using a tabbed format, grouped by the user to simplify organization of the sensor readings. Up to four alarms for each display position can be entered. The interface has both external contact and e-mail and is provided in a compact wall mount enclosure.
Key Features
THE WS1 Webserver interface comes with a host of features such as:
Interface
The interface can service up to 8 AGI CMC bus converters over an RS485 network.
Bus Converter
Each Bus Converter can process 32 AGI CMC digital sensors
Safe for Hazardous Environments
Bus converters are available for both industrial/commercial operations and are intrinsically safe for hazardous environments
Available Options
A complete line of controllers and process sensors are available
Wiring System
The wiring system is fully specified and includes field interconnect components
Modbus TCP/IP slave interface
In addition to the web server, the interface has a Modbus TCP/IP slave interface for connection to remote PLC based industrial monitoring systems.
Benefits:
The WS1 webserver Interface has a wide array of benefits such as:
- Monitor up to 256 digital sensors with 1 second update time
- No additional software required - uses web browser for setup and display
- Transparent mapping of sensors to display positions
- Sensor values can be displayed in SI, English or user units
- Dry contact outputs for horn and external alarm
- Simple integration with existing plant PLC based monitoring systems

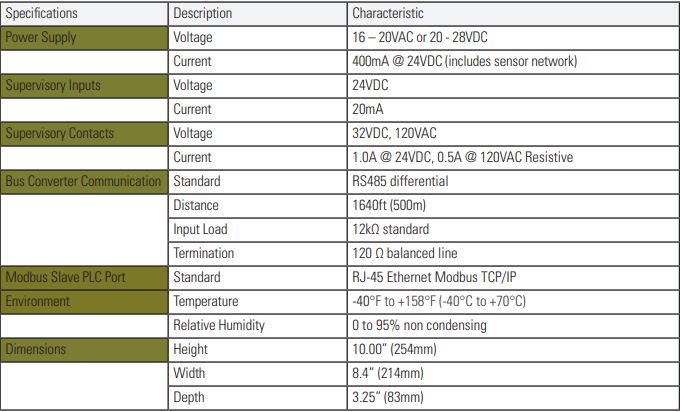

Specifications:
