Overhead Bulk Storage bins are typically used for the interim holding of material in a processing system, for example the blending of feed ingredients and the holding of products in truck loading systems.
Product Applications
- The AGI overhead bulk storage bins are manufactured as individual smooth wall tanks. This system is most often used in the design of Feed Mills and Truck Loading systems. The Smooth wall system is noted for its ability to effectively deal with difficult to handle materials.
- AGI Overhead Bin system has smooth interior walls and when combined with the AGI Mass Flow Discharge, provide for the true Mass Flow discharge of material that prevents bridging of products in the tank and first in first out material flow.
Options
- Mass flow or Side draw square discharge hoppers
- Multiple compartment tanks
- Custom dimension and sidewall heights available
Key Features
Custom fit for your project needs
Custom dimensions and sidewall heights available
Low cost and low maintenance
It is an economical solution due to its low installation cost and minimal on-site assembly required.

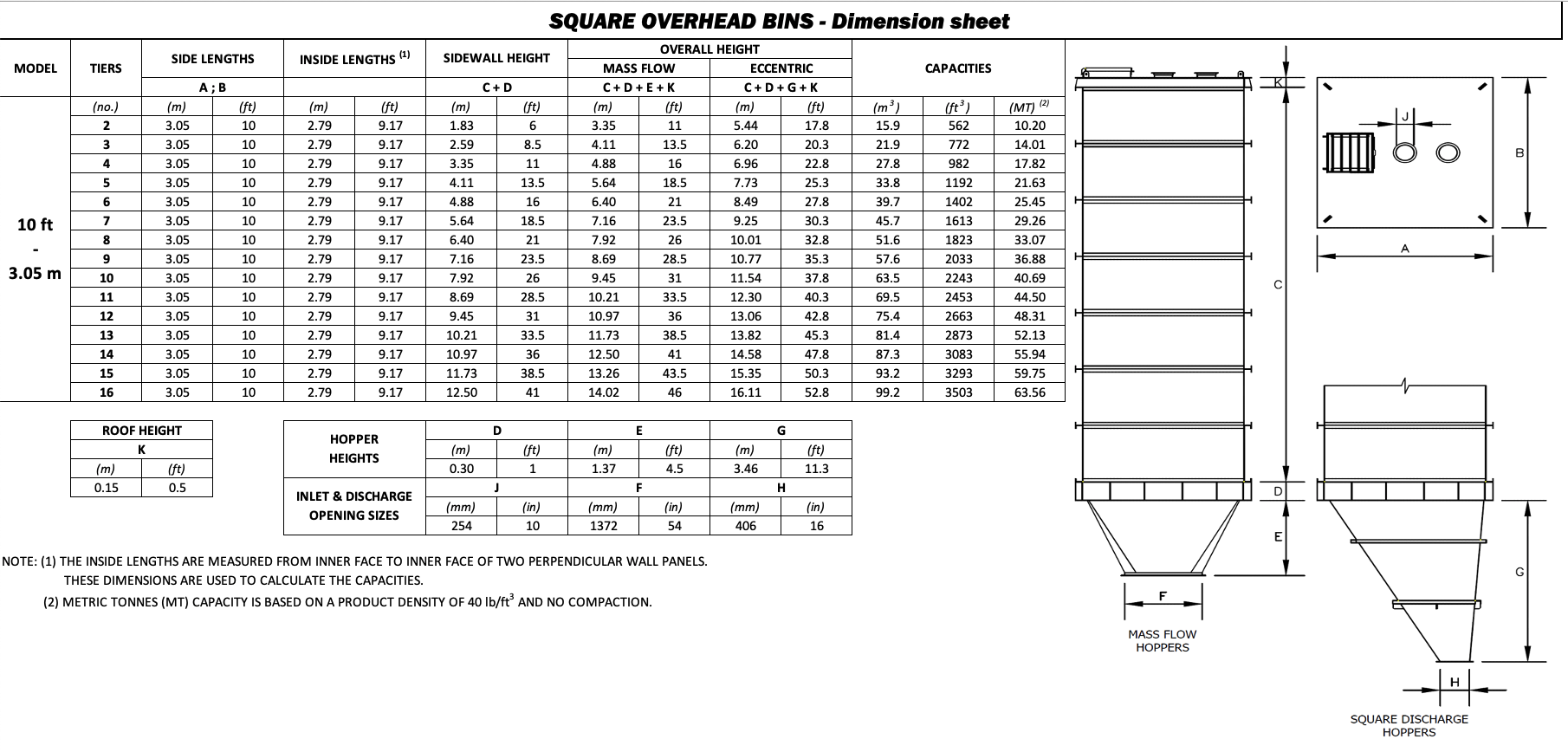

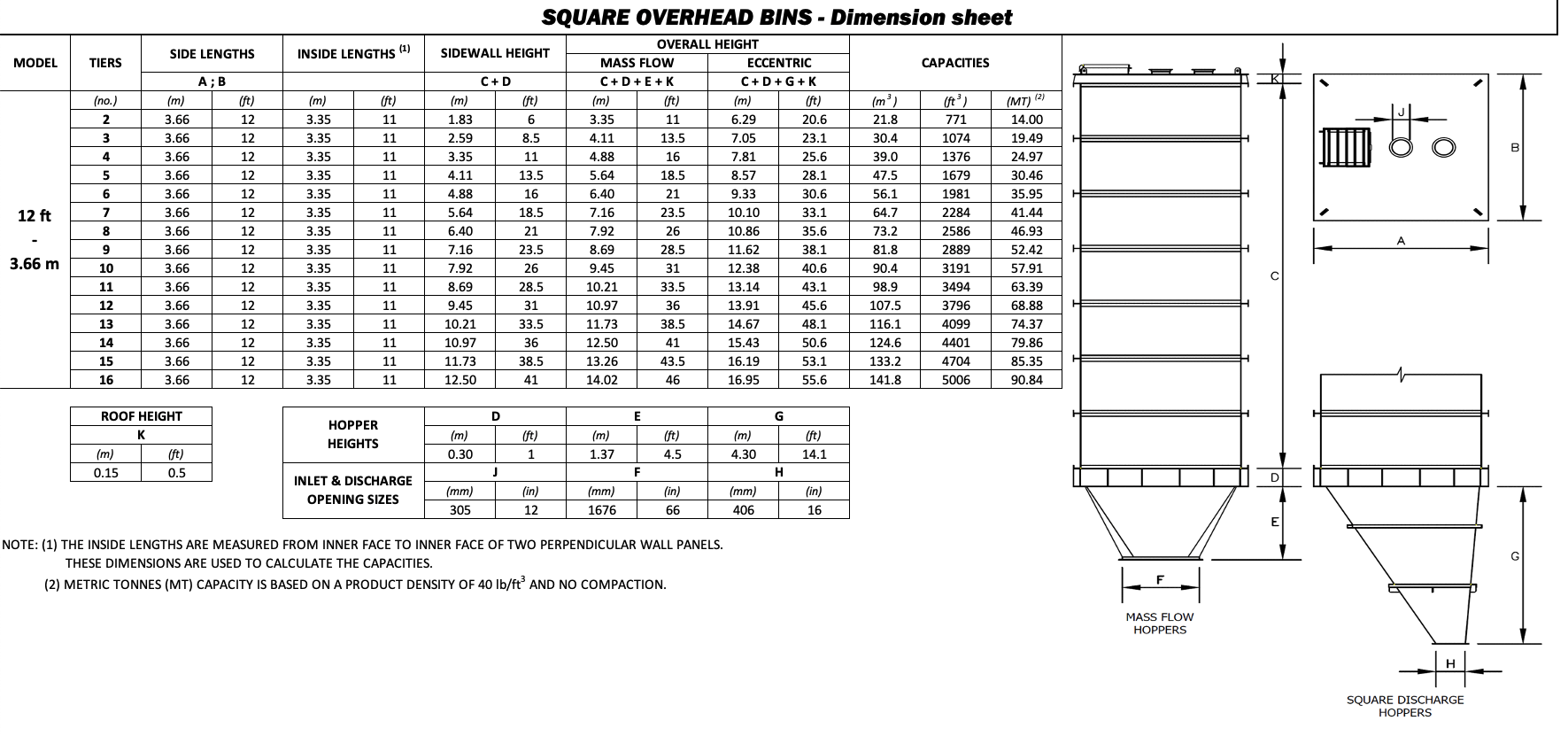

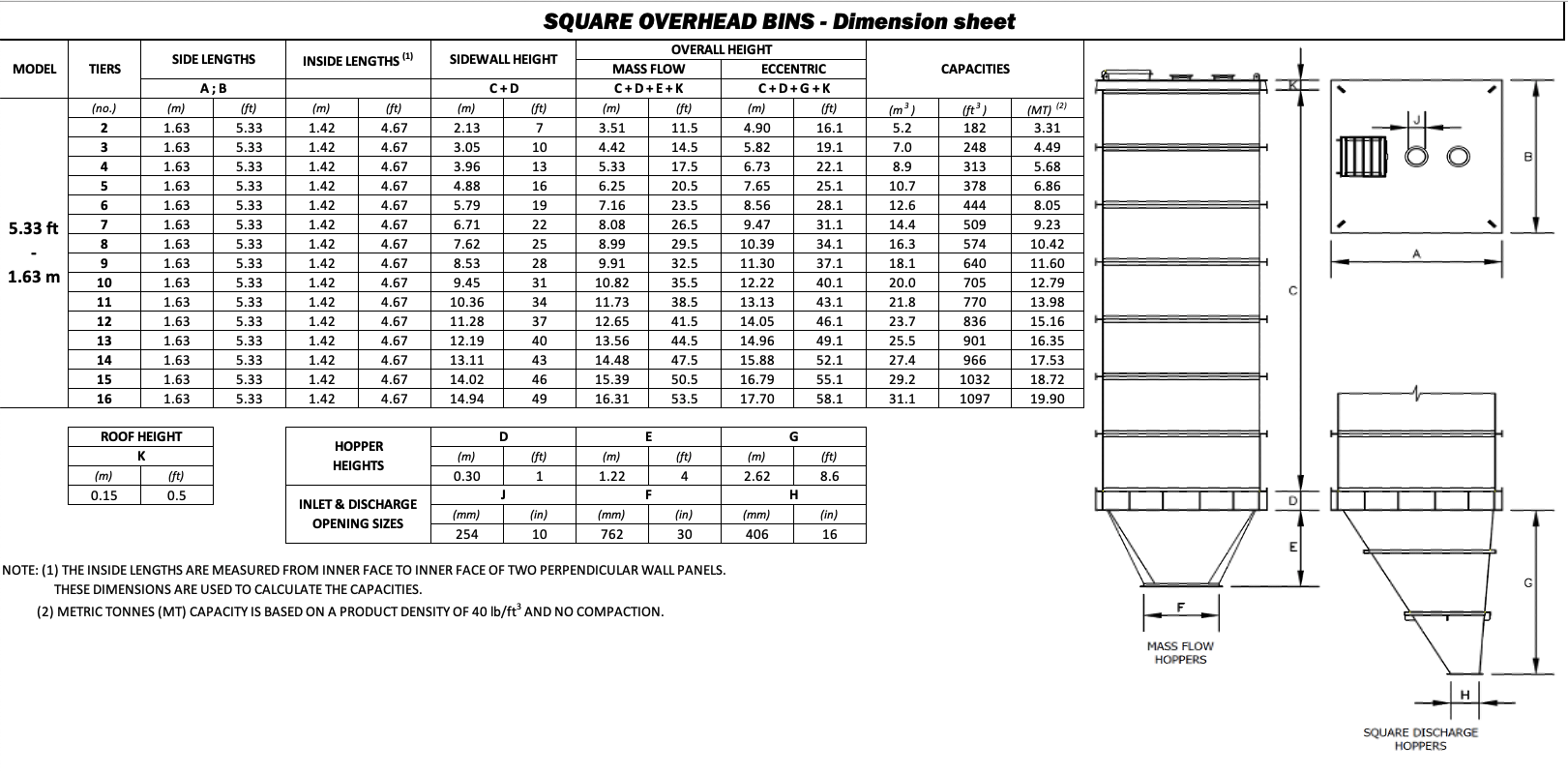

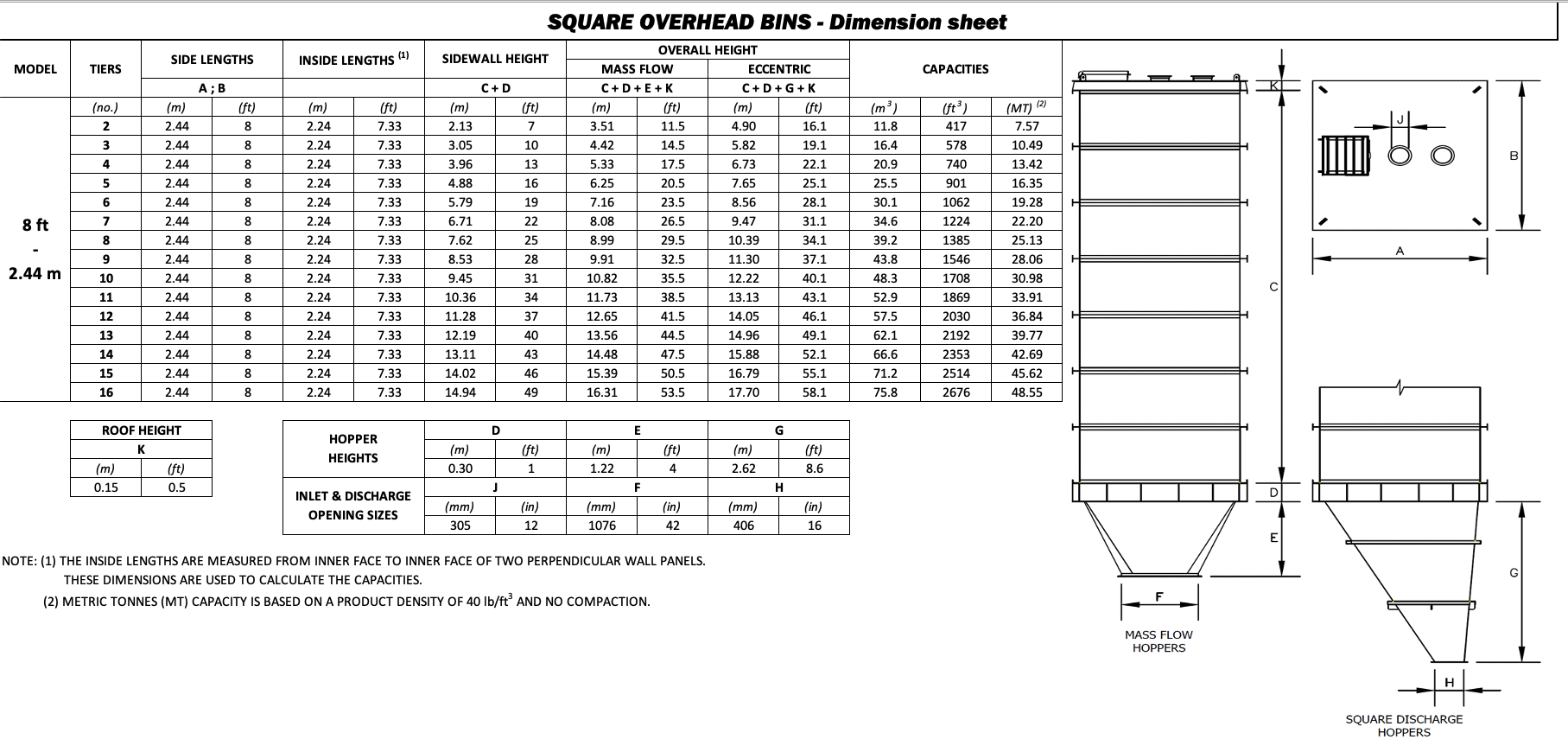

Specifications
Capacity options
1,000 to 5,830 CF
Options available
Mass flow or Custom design hoppers
Sidewall
Up to 12′ x 12′, maximum 48′sidewall
Heavy-duty construction
Heavy gauge mild steel construction
Durable
External stiffeners and chamfered corners
