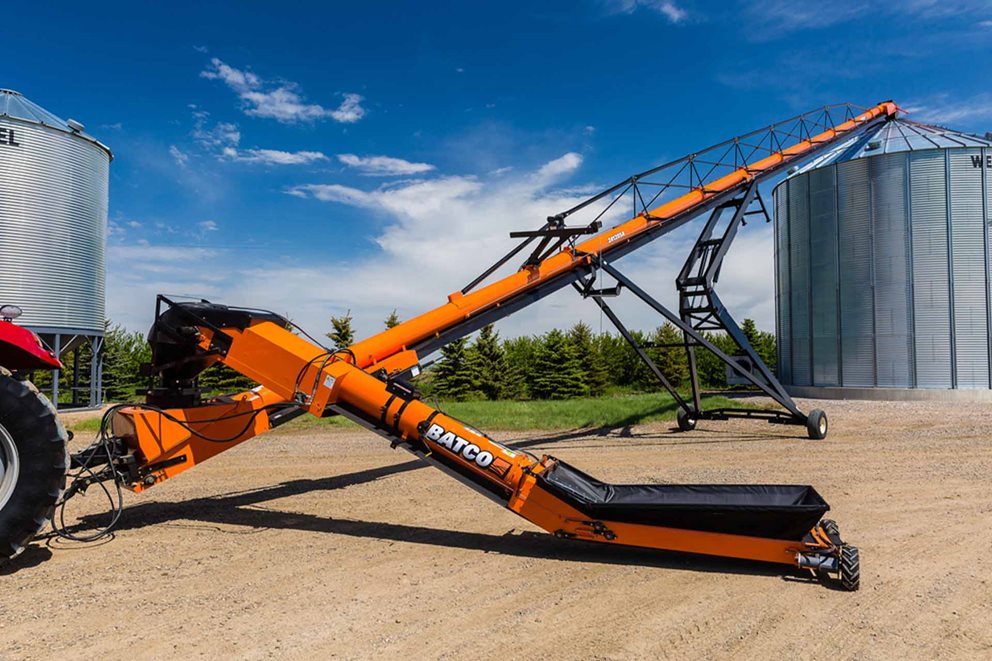

Batco Belt Conveyors and equipment are built tough to perform, yet designed and engineered for gentle handling of delicate crops, seeds and commodities.
Belt Conveyor Features:
Weather guards are standard on all Batco conveyors
Maximum service height at 30-degrees
2-ply Chevron with nylon slider back for proper traction
Plastic hood and collapsible canvas hoppers to provide cushioning for fragile materials
2400 Series:
Capacity rated up to 14,000 bph
Available in lengths from 65' to 120'
14" diameter, 12-gauge tube
Series Features:
Dual cylinder hydraulic scissor lift on 65' – 95' lengths
Newly designed heavy-duty undercarriage for 105' lengths to 120' lengths
Cable trussing on 55'to 95' lenths, steel trussing on the 105' lengths to 120' lengths
Heavy-duty shafts and industrial bearings
Enhanced backbone on 105' lengths and up for increased strength and stability
Drive Options:
Pinch S-Drive: Electric; PTO (side or front)
