Fuel-Vault® dual wall tanks are built to CAN/ULC S601 and UL 142, are National and Provincial/State Fire Code compliant and ERCB D55 compliant. Tanks are fabricated by CWB certified welders under an ISO quality system.
Typical Applications
- Petroleum retailing facilities
- Petroleum bulk refueling facilities and fleet operations
- Airport use for aircraft fuels, maintenance fuels and rental car fleet refueling
- Stand-by generators
- On-farm use for agricultural operations of all sizes
- Industrial parks and transport-related commercial businesses
- Oil and gas, forestry and mining facilities, including temporary and permanent sites
- Marinas for use with boat fuels
- Construction use for refueling heavy equipment on construction sites
- Rental applications
- Municipalities for equipment refueling, including fleet vehicles, graders, sanding trucks and heavy equipment
Options Available
- Durable steel dual wall construction
- Secondary shell that provides a minimum of 100% containment
- Industry-leading, weather and corrosion resistant powder coated finish
- Large-mouth spill box with fill, gauge and drain openings with a lockable weatherproof cover (Tanks larger than 11,000L)
- Saddles
- Interstitial space inspection port to help identify possible fluid release
- Emergency pressure surge vent
- Gauge stick/gauge chart and holder for confirming volumes included with tanks larger than 11,000L
- Heavy duty lifting lugs for off-loading and positioning ease
- Canstrut tabs on both heads to attach equipment options

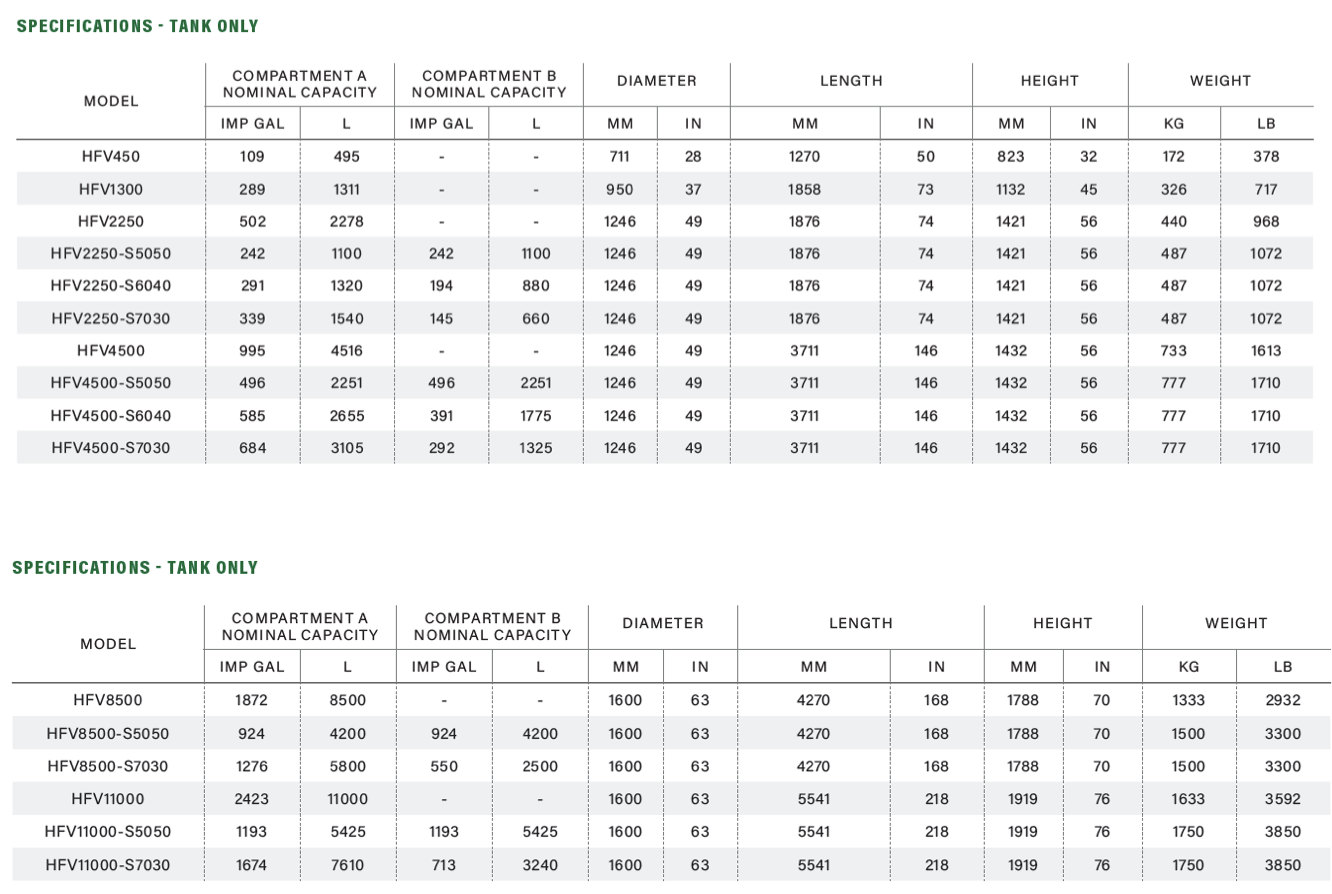

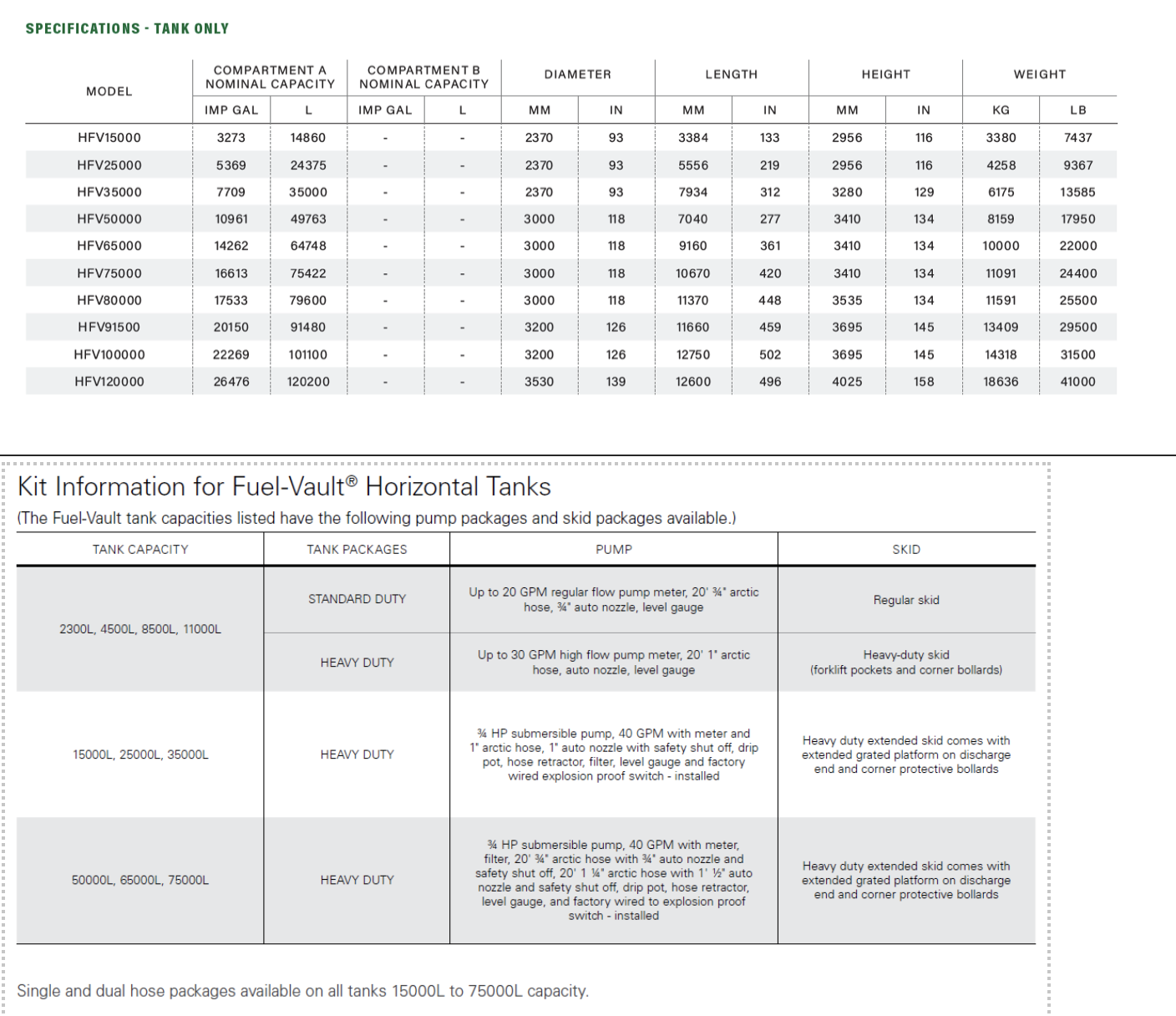

Specifications
Westeel supplies custom configurations depending on needs
- Off-the-shelf bare or skidded tank to be outfitted by the end user
- Standard packages that include tank, skid, pump, meter, hose, overfill protection and more
- Customized tanks that may include any or all of the following:
- Catwalks for access to tank top fittings and components
- End or side mounted stairs and ladders
- Multiple compartments for storing different fuels in a single tank
- Single and multi-product dispensers
- Integrated turnkey options including integrated dispensers and/or cardlock systems
- Lighting to allow for easier use at night
- Remote/bottom fill systems that eliminate the need to climb to the top of the tank for filling
- Custom colors and branding
- Heating and insulation options for liquids that require freeze protection
- Standard, heavy duty and live roll skids based on the use of the tank, frequency of moving and ground conditions
- Advanced collision barriers to protect the tank in high traffic applications
- And many more options
