The improved durable boot is built to last longer and make inspection and servicing easier, while also making life easier with a better PTO holder and an additional holder to store hoses.
Open discharge spout
- More efficient flow
- 20% HP reduction
- New tapered bearing for increased lifespan
Steerable axle
- Improved maneuverability
- Optional on 13”, standard on 16”
Redesigned boot
- Separate boot flight with removable shafts
- AR boot flight standard (13” and 16”)
- Hanger bearing supports boot flight and reduces noise
- Easier inspections and servicing with dual side boot clean-out doors (13”)
Key Features
Open Discharge Spout
New open discharge spout decreases horsepower requirements
Trussing
Aircraft cable trussing
Scissor Lift and A-Frame
Scissor lift for 10" and 13" (74'-94') and A-frame support for 13" (114') and 16" models
Axles
Wide standing axles

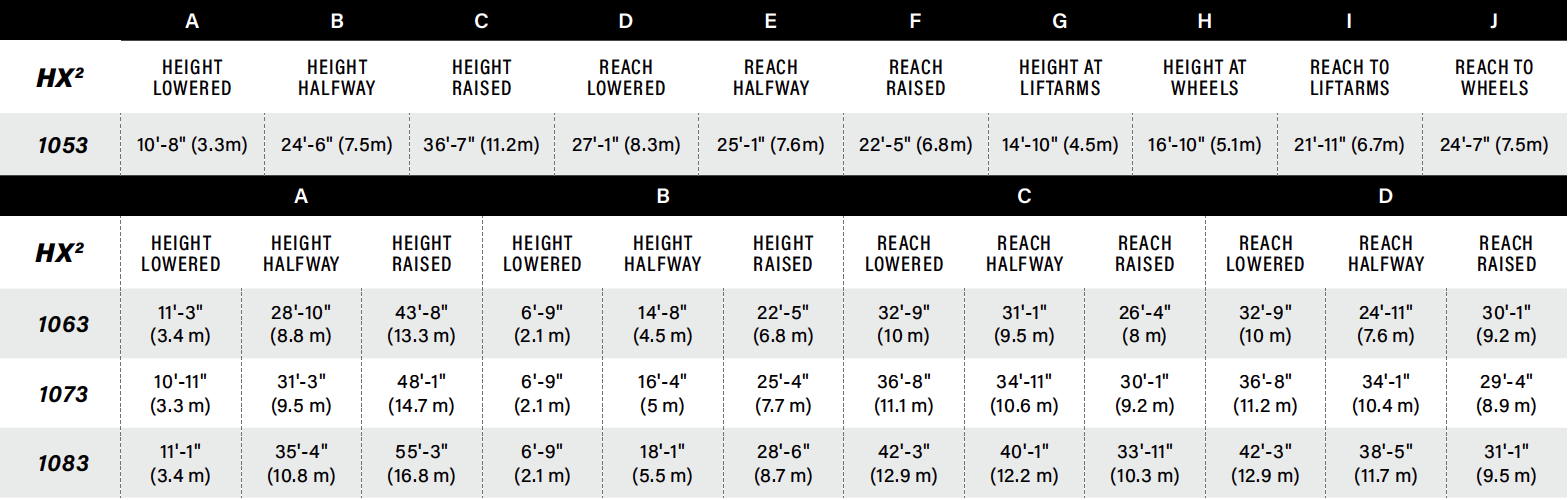

Specifications
HX² 10"
Length
63’ – 83’
BPH
Up to 6,000
Frame
Stable scissor lift frame
HX² 13"
Diameter
13”
Length
74’ – 114’
BPH
Up to 11,000
Frame (Scissor)
Stable scissor lift frame (74' - 94')
Frame (A-frame)
Strong A-frame support (114')
HX² 16"
Diameter
16"
Length
85’ – 125’
BPH
Up to 23,000
Frame
A-frame
Hopper Options
X-TEND
13" / 16"
- Retracts and moves side to side
- Low profile hopper with dual flighting
- Hydraulic controls
X-OVER
13"
- Drive-over belt-driven hopper
- Reinforced drive-over deck and ramps
- Mechanical drive hopper
POWER SWING
10" / 13" / 16"
- 12V remote electric or hydraulic drive
HX² Image Gallery
